Tripp Lite PDUMVR30HVNETLX 24-Outlet PDU
Manufacturer: Tripp Lite
UPC: 037332202840
Condition: New
Tripp Lite PDUMVR30HVNETLX 24-Outlet PDU
Price $1,426.15
Product TypePDU
Brand NameTripp Lite
ManufacturerTripp Lite
Product NamePDUMVR30HVNETLX 24-Outlet PDU
Manufacturer Part NumberPDUMVR30HVNETLX
Manufacturer Website Addresshttp://www.tripplite.com
Environmentally FriendlyYes
Environmental CertificationRoHS
TAA CompliantYes
Package Contents
  • Configuration Cable
  • 24 x Cable ties
  • Rack-mounting Hardware
  • Owner's Manual
Rack Height0U
Form FactorVertical Rackmount
Weight (Approximate)12 lb
Power Rating5.80 kVA
Input Current30 A
Input Voltage230 V
Output Voltage230 V
Input ReceptaclesNEMA L6-30P
Output Receptacles20 x IEC 60320 C134 x IEC 60320 C19
Protection TypeOverload Protection
  • HTTP
  • PowerAlert
  • SMTP
  • SNMPv1
  • SNMPv2
  • SNMPv3
  • Telnet
  • SSH
  • FTP
  • DHCP and NTP
Limited Warranty2 Year

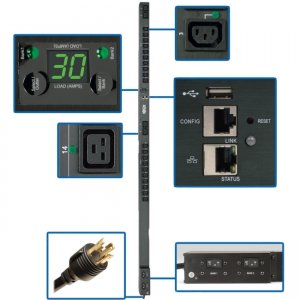

The PDUMVR30HVNETLX 5/5.8kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. Recommended for any IT or industrial application, it features 24 switched outlets (20 C13 and 4 C19). LEDs indicate each outlet's on/off power status, and you can monitor each outlet's power consumption remotely or via digital display. A 10-foot cord with NEMA L6-30P plug connects the PDU to a compatible AC power source, generator or protected UPS.The built-in Java-free HTML5-based LX Platform interface enables full remote access for power monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.A digital LED meter allows you to monitor each bank's load in real time to ensure the PDUMVR30HVNETLX is used at maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the includedPDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.
