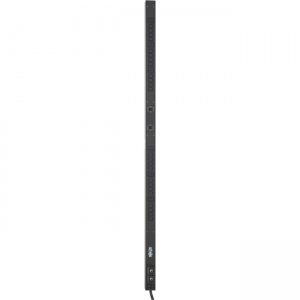

Tripp Lite PDUMV30HV PDU Metered 208V - 240V 30A 30 Outlet
Manufacturer: Tripp Lite
UPC: 037332139351
SKU: PDUMV30HV
Condition: New
Tripp Lite PDUMV30HV PDU Metered 208V - 240V 30A 30 Outlet
Price $338.12
Product TypePDU
Brand NameTripp Lite
ManufacturerTripp Lite
Product ModelPDUMV30HV
Product NamePDUMV30HV PDU Metered 208V - 240V 30A 30 Outlet
Manufacturer Part NumberPDUMV30HV
Manufacturer Website Addresshttp://www.tripplite.com
Height63.8"
Width2.3"
Depth3.8"
Form FactorVertical RackmountWall Mountable
Weight (Approximate)8 lb
Input ReceptaclesNEMA L6-30P
Output Receptacles6 x IEC 320 EN 60320 C1924 x IEC 320 EN 60320 C13
Protection TypeOverload ProtectionShort Circuit Protection
Input Voltage208 V AC240 V AC
Output Voltage208 V AC240 V AC
Package Contents
  • PDUMV30HV PDU Metered 208V - 240V 30A 30 Outlet
  • PDUMV30HV 63.75 inch basic PDU with owner's manual
  • Set of 2 bolt-on plug retention brackets and installation hardware
  • Set of mounting brackets and installation hardware
Limited Warranty2 Year
PDUMV30HV 63.75 in. vertical 0U metered rack PDU supports 30A maximum capacity at 208/240V. Includes 10 ft attached line cord with L6-30P input plug. 24 C13 and 6 C19 outlets support up to 30 directly connected pieces of networking equipment. Outlets are arranged in two separately metered and breakered 15A load banks (each with 3 C19 and 12 C13 outlets). Set of 2 built-in 2 character displays offer continuous information on PDU power consumption for each of the two built-in loading banks. Each built-in, easy to read, two-character LED display offers continuous PDU current monitoring data in one-amp increments. Tooless mounting enables simple installation in button-mount compatible racks. Included mounting brackets support vertical installation in standard 2 and 4 post racks or other surfaces, such as under-counter or wallmount configurations. Plug retention brackets keep vital equipment plugged in and continuously powered.
