Tripp Lite PDUMH32HVAT PDU
Manufacturer: Tripp Lite
UPC: 037332186881
SKU: PDUMH32HVAT
Condition: New
Tripp Lite PDUMH32HVAT PDU
Price $1,014.39
Product TypePDU
Brand NameTripp Lite
ManufacturerTripp Lite
Product ModelPDUMH32HVAT
Product NamePDUMH32HVAT PDU
Manufacturer Part NumberPDUMH32HVAT
Manufacturer Website Addresshttp://www.tripplite.com
Green CompliantYes
Green Compliance Certificate/AuthorityRoHS
Package Contents
  • PDUMH32HVAT 7.4kW Single-Phase 230V ATS/Switched PDU
  • Rack-mounting Brackets
  • Cord Retention Brackets
  • Cable Ties
  • Owner's Manual
Height3.5"
Width17.5"
Depth12.5"
Rack Height2U
Form FactorRack-mountable
Weight (Approximate)13.70 lb
Power Rating7.70 kVA
Input Current32 A
Input Voltage200 V AC208 V AC220 V AC230 V AC240 V AC
Output Voltage200 V AC208 V AC220 V AC230 V AC240 V AC
Input Receptacles2 x IEC 60309 32A BLUE (2P+E)
Output Receptacles16 x IEC 60320 C132 x IEC 60320 C19
Protection TypeOverload Protection
Limited Warranty2 Year

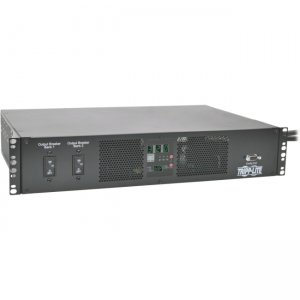

The PDUMH32HVAT 7.4kW Single-Phase 230V ATS/Switched PDU provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms, it mounts in 2U of space in EIA-standard racks and features 18 outlets (16 C13 and two C19) in two load banks, each bank protected by a 20A circuit breaker.Dual 3-meter input cords with IEC309 32A Blue (2P+E) plugs connect to separate primary and secondary single-phase 230V power sources. The PDU constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 1-5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption. Multifunction digital display with LED indicators reports output current, voltage, power factor and kW loading information.
