Tripp Lite PDUMH32HV Metered 18-Outlets 7.3kW PDU
Manufacturer: Tripp Lite
UPC: 037332159045
SKU: PDUMH32HV
Condition: New
Tripp Lite PDUMH32HV Metered 18-Outlets 7.3kW PDU
Price $384.71
Out of Stock
Product TypePDU
Product SeriesMetered
Brand NameTripp Lite
ManufacturerTripp Lite
Product ModelPDUMH32HV
Product NameMetered PDUMH32HV 18-Outlets 7.3kW PDU
Manufacturer Part NumberPDUMH32HV
Manufacturer Website Addresswww.tripplite.com
Package Contents
  • Metered PDUMH32HV 18-Outlets 7.3kW PDU
  • Mounting Brackets
  • Plug Retention Brackets
  • User Manual
  • Height3.5"
    Width17.5"
    Depth12.5"
    Form Factor2U Horizontal Rackmount
    Power Cord/Cable12 ft
    Weight (Approximate)13.70 lb
    Current32 A Input Current Maximum
    Input Voltage230 V AC Single-phase
    Output Voltage230 V AC
    Power Rating7.30 kVA
    Output Receptacles2 x IEC 60320 C1916 x IEC 60320 C13
    Limited Warranty2 Year

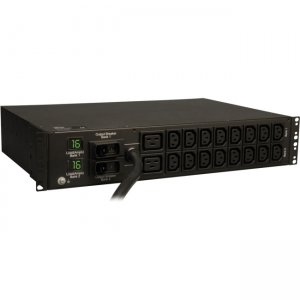

    PDUMH32HV horizontal 2U metered rack PDU supports 32A maximum capacity at 230V. Includes 12 ft / 3.6m attached line cord with Blue IEC-309 32A input plug and 18 output receptacles (16 C13, 2 C19). Outlets are arranged in two separately breakered 9 outlet load banks. Set of two visual current meters tracks the output current of each load bank separately. Supports 2U rackmount installation in 19 inch racks. Included cord retention brackets keeps vital network equipment plugged in and continuously powered.
