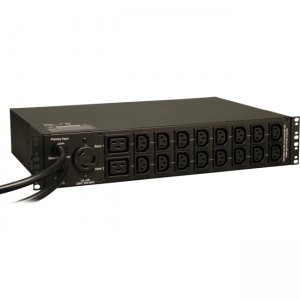

Tripp Lite PDUMH30HVAT Metered 19-Outlets PDU
Manufacturer: Tripp Lite
UPC: 037332159212
Condition: New
Tripp Lite PDUMH30HVAT Metered 19-Outlets PDU
Price $738.28
Product TypePDU
Product SeriesMetered
Brand NameTripp Lite
ManufacturerTripp Lite
Product ModelPDUMH30HVAT
Product NameMetered PDUMH30HVAT 19-Outlets PDU
Manufacturer Part NumberPDUMH30HVAT
Manufacturer Website Addresshttp://www.tripplite.com
Green CompliantYes
Green Compliance Certificate/AuthorityRoHS
Package Contents
  • Metered PDUMH30HVAT 19-Outlets PDU
  • Rackmount Installation Brackets
  • Installable Plug-retention Shelves
  • Cable Ties
Rack Height2U
Form FactorHorizontal Rackmount
Weight (Approximate)13.80 lb
Input Receptacles2 x NEMA L6-30P
Output Receptacles1 x NEMA L6-30R2 x IEC 60320 C1916 x IEC 60320 C13
Input Voltage208 V AC240 V AC
Output Voltage208 V AC240 V AC
Limited Warranty2 Year
PDUMH30HVAT Metered ATS / Auto-Transfer Switch offers 208/240V 30A dual-input power distribution and visual current metering in a 2U horizontal rackmount installation format. Set of two NEMA L6-30P line cords enable separate primary and secondary input connections. Includes 19 built-in outputs (16 C13, 2 C19 & 1 L6-30R). Digital current metering with push-button display control tracks output power consumption in 4 segments: Bank 1 (9 upper C13 & C19 outlets), Bank 2 (9 lower C13 & C19 outlets), L6-30R (single outlet) and total PDU output. Supports 2U installation in 2 or 4 post racks, with additional support for wall-mount and under-counter placement.
