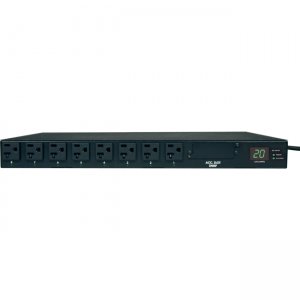

Tripp Lite PDUMH20AT PDU Metered ATS 120V 20A 16 Outlet
Manufacturer: Tripp Lite
UPC: 037332126665
SKU: PDUMH20AT
Condition: New
Tripp Lite PDUMH20AT PDU Metered ATS 120V 20A 16 Outlet
Price $515.03
Product TypePDU
Brand NameTripp Lite
ManufacturerTripp Lite
Product ModelPDUMH20ATNET
Product NamePDUMH20AT PDU Metered ATS 120V 20A 16 Outlet
Manufacturer Part NumberPDUMH20AT
Manufacturer Website Addresshttp://www.tripplite.com
Green CompliantYes
Package Contents
  • PDUMH20AT PDU Metered ATS 120V 20A 16 Outlet
  • PDU with attached L5-20P input power cord
  • Detachable C19 to NEMA L5-20P 12 ft/3.6m power cord for optional secondary input
  • Two NEMA L5-20R to NEMA 5-20P plug adapters
  • User manual with warranty information
Height1.8"
Width17.5"
Depth14.5"
Rack Height1U
Form FactorRack-mountable
Weight (Approximate)12.20 lb
Power Rating2.40 kVA
Input Voltage120 V AC
Output Voltage120 V AC
Input Receptacles2 x NEMA L5-20P
Output Receptacles16 x NEMA 5-15/20R
Management
  • Optional Automatic Transfer Switch (ATS) function enables setup for hot-swappable UPS maintenance bypass
  • Dual UPS protection or dual AC input redundancy for critical single-corded network hardware
  • Slot for optional SNMPWEBCARD accessory to enable remote individual outlet control over IP
Tripp Lite Metered ATS / Auto Transfer Switch provides a redundant power option for single-corded network devices. Dual input cords support separate connection to PRIMARY and SECONDARY power sources. If the primary power source becomes unstable or fails altogether, the ATS will switch over to the secondary power source until the primary input is restored and stable. Enables fault tolerant hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two-UPS environment, the primary input cable must be supported by a full time sine wave UPS with zero transfer time. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. Front input LED's display primary or secondary power availability.
