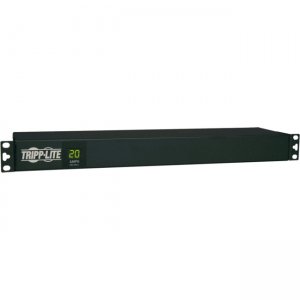

Tripp Lite PDUMH20 PDU Metered 120V 20A 12 Outlet
Manufacturer: Tripp Lite
UPC: 037332142504
SKU: PDUMH20
Condition: New
Tripp Lite PDUMH20 PDU Metered 120V 20A 12 Outlet
Price $166.74
Product TypePDU
Brand NameTripp Lite
ManufacturerTripp Lite
Product ModelPDUMH20
Product NamePDUMH20 PDU Metered 120V 20A 12 Outlet
Manufacturer Part NumberPDUMH20
Manufacturer Website Addresshttp://www.tripplite.com
Green CompliantYes
Green Compliance Certificate/AuthorityRoHS
Package Contents
  • PDUMH20 PDU Metered 120V 20A 12 Outlet
  • PDUMH20 Metered rackmount PDU
  • Owner's manual with warranty information
Height1.8"
Width17.5"
Depth4.5"
Rack Height1U
Form FactorRack-mountableVertical Rackmount
Weight (Approximate)3 lb
Input ReceptaclesNEMA L5-20P
Output Receptacles12 x NEMA 5-15/20R
Protection TypeOverload Protection
Input Voltage120 V AC
Output Voltage120 V AC
Limited Warranty2 Year
Tripp Lite's PDUMH20 AC power distribution unit offers a digital current monitor and provides 20 amps of 120 volt capacity in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for wallmount, under-counter, or 1U/0U rackmount installation. Uses only 1U of rack space when installed in any 19-inch rack, with the potential for zero U mounting in the cable management area of most rack enclosures. Built-in digital ammeter display offers continuous visual power consumption data for the entire PDU. Attractive rackmount housing with 12 rear-facing outlets measures only 4.5 inches in depth. Unfiltered electrical pass-through without a power switch makes the PDUMH20 ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets, and more. Includes 12 rear-facing NEMA 5-15/20R outlets, 15-ft. AC power cord with L5-20P input plug. Comes wih 6-inch L5-20P-to-5-20P adapter, 20 amp breaker, TVSS grounding lug, and rugged all-metal rackmount case design.
