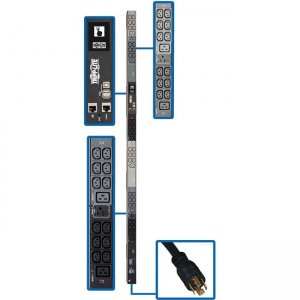

Tripp Lite PDU3EVN6L2120 45-Outlet PDU
Manufacturer: Tripp Lite
UPC: 037332206787
Condition: New
Tripp Lite PDU3EVN6L2120 45-Outlet PDU
Price $860.73
Product TypePDU
Brand NameTripp Lite
ManufacturerTripp Lite
Product ModelPDU3EVN6L2120
Product NamePDU3EVN6L2120 45-Outlet PDU
Manufacturer Part NumberPDU3EVN6L2120
Manufacturer Website Addresshttp://www.tripplite.com
Environmentally FriendlyYes
Environmental CertificationRoHS
TAA CompliantYes
Package Contents
  • PDU3EVN6L2120 45-Outlet PDU
  • Built-in LX Platform Interface
  • Configuration Cable
  • 42 x Plug-lock Insert Sleeves
  • Rack-mounting Hardware
  • Spare Mounting Buttons
  • PDUMVROTATEBRKT Mounting Bracket Accessory
  • Owner's Manual
Network (RJ-45)Yes
Mounting OrientationVertical
Rack Height0U
Form FactorRack-mountable
Weight (Approximate)13.50 lb
Power Rating (Watt)5800 W
Input Current16 A
Input Voltage230 V AC
Output Voltage120 V AC208 V AC
Input Receptacles1 x NEMA L21-20P
Output Receptacles36 x IEC 60320 C136 x IEC 60320 C193 x NEMA 5-15/20R
  • IPv4
  • IPv6
  • HTTP
  • SMTP
  • SNMPv1
  • SNMPv2
  • SNMPv3
  • telnet
  • SSH
  • FTP
  • DHCP
  • NTP
Limited Warranty2 Year
5.8kW 3-phase PDU with multifunction touchscreen LCD distributes and monitors AC power in an IT or industrial environment. Features3-Phase 0U PDU Distributes and Monitors Network-Grade PowerRecommended for data centers, server rooms and network closets, this monitored power distribution unit provides real-time remote monitoring of voltage and load levels via built-in network connection. A six-foot (1.8-meter) cord with NEMA L21-20P input plug connects the 208V 3-phase PDU to a compatible AC power source, generator or protected UPS. The firmware can be easily upgraded to ensure the Tripp Lite vertical PDU continues to perform at its best.45 Outlets Dispense AC Power to Connected EquipmentDuring normal operation, 36 C13 (208V), six C19 (208V) and three NEMA 5-15/20R (120V) outlets distribute AC power to rack equipment. The outlets are split into six individually monitored load banks-three banks containing two C19 and 12 C13 outlets and three of one 5-15/20R outlet each. Three LEDs monitor load conditions for each bank. Plug-lock insert sleeves for the C13 and C19 outlets are included to prevent connected cables from becoming accidentally dislodged.Built-In LX Platform Network Management Card Allows Remote Access 24/7The Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. The 0U PDU can receive IP address assignments via DHCP server (automatic) or static (manual) method.Color Touchscreen LCD Offers Important Data at a GlanceAn easy-to-navigate color touchscreen LCD reports network data, including IP address, input current level per phase, and output current per load bank with ±1% billing-grade accuracy. It also generates a unique QR code to allow read-only access to the 0U PDU via mobile device. If an EnviroSense2 module is connected to the 3-phase PDU, the LCD also displays status and environmental data, such as temperature and humidity.Easy to Install Vertically in an EIA-Standard 19 in. RackThe 70-inch (178 cm) 0U PDU mounts vertically using the included toolless mounting buttons or the included rack-mounting brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the 208V 3-phase PDU with outlets facing the rear for better airflow or equipment access.TAA-Compliant for GSA Schedule PurchasesThe PDU3EVN6L2120 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
