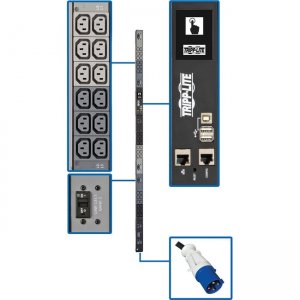

Tripp Lite PDU3EVN6G60C 36-Outlet PDU
Manufacturer: Tripp Lite
UPC: 037332206800
Condition: New
Tripp Lite PDU3EVN6G60C 36-Outlet PDU
Price $1,920.43
Product TypePDU
Brand NameTripp Lite
ManufacturerTripp Lite
Product ModelPDU3EVN6G60C
Product NamePDU3EVN6G60C 36-Outlet PDU
Manufacturer Part NumberPDU3EVN6G60C
Manufacturer Website Addresshttp://www.tripplite.com
Environmentally FriendlyYes
Environmental CertificationRoHS
TAA CompliantYes
Package Contents
  • PDU3EVN6G60C 36-Outlet PDU
  • Built-in LX Platform Interface
  • Configuration Cable
  • 36 x Plug-Lock Insert Sleeves
  • Rack-Mounting Hardware
  • Spare Mounting Buttons
  • Mounting Bracket Accessory
  • Owner's Manual
Network (RJ-45)Yes
Mounting OrientationVertical
Rack Height0U
Form FactorRack-mountable
Weight (Approximate)18.65 lb
Power Rating (Watt)18.70 kW
Input Current60 A
Input Voltage230 V AC
Output Voltage200 V AC208 V AC220 V AC230 V AC240 V AC
Input ReceptaclesIEC 60309 60A BLUE (3P+E)
Output Receptacles36 x IEC 60309 C13
Protection TypeOverload Protection


  • IPv4
  • IPv6
  • HTTP
  • SMTP
  • SNMPv1
  • SNMPv2
  • SNMPv3
  • Telnet
  • SSH
  • FTP
  • DHCP
  • NTP.
Limited Warranty2 Year
3-Phase PDU Distributes and Monitors Network-Grade PowerRecommended for data centers, server rooms and network closets, the 18.7kW PDU3EVN6G60C provides real-time remote monitoring of voltage and load levels via built-in network connection. A six-foot (1.8-meter) cord with IEC 309 60A Blue (3P+E) input plug connects the 3-phase PDU to a compatible AC power source, generator or protected UPS. The firmware can be easily upgraded to ensure the 0U PDU continues to perform at its best as connected equipment adds new features.36 Outlets Dispense AC PowerDuring normal operation, 36 C13 outlets distribute AC power to connected equipment. Each 200/208/240V outlet is accompanied by an LED that illuminates when the outlet is ramped up and ready to be used. The outlets are split into six load banks, each protected by a 20A circuit breaker that trips if the bank's connected load exceeds its maximum load rating. Plug-lock insert sleeves are included to prevent connected cables from becoming accidentally dislodged.Built-In LX Platform Network Management Card Allows Remote Access 24/7The Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. The 0U PDU can receive IP address assignments via DHCP server (automatic) or static (manual) method.Color Touchscreen LCD Offers Important Data at a GlanceAn easy-to-navigate color touchscreen LCD reports network data, including IP address, input current level per phase, and output current per load bank with ±1% billing-grade accuracy. It also generates a unique QR code to allow read-only access to the 3-phase PDU via mobile device. If an EnviroSense2 module is connected to the PDU, the LCD also displays its status and environmental data, such as temperature and humidity.Easy to Install Vertically in an EIA-Standard 19 in. RackThe 0U PDU mounts vertically using the included toolless mounting buttons or the included rack-mounting brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the 3- phase PDU with outlets facing the rear for better airflow or equipment access.TAA-Compliant for GSA Schedule PurchasesThe PDU3EVN6G60C is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.2-Year WarrantyThe PDU3EVN6G60C is backed by a 2-year warranty, ensuring reliability and performance.
