Tripp Lite PDU1230 PDU Basic 208V / 240V 30A 20 Outlet
Manufacturer: Tripp Lite
UPC: 601000713862
SKU: PDU1230
Condition: New
Tripp Lite PDU1230 PDU Basic 208V / 240V 30A 20 Outlet
Price $255.70
Product TypePDU
Brand NameTripp Lite
ManufacturerTripp Lite
Product ModelPDU1230
Product NamePDU1230 PDU Basic 208V / 240V 30A 20 Outlet
Manufacturer Part NumberPDU1230
Manufacturer Website Addresshttp://www.tripplite.com
Green CompliantYes
Green Compliance Certificate/AuthorityRoHS
Package Contents
  • PDU1230 PDU Basic 208V / 240V 30A 20 Outlet
  • Instruction Manual with Warranty Information
Height1.8"
Width17.5"
Depth5.2"
Rack Height1U
Form FactorRack-mountableVertical Rackmount
Weight (Approximate)7.50 lb
Power Rating4.99 kVA
Input Voltage208 V AC240 V AC
Output Voltage208 V AC240 V AC
Input ReceptaclesNEMA L6-30P
Output Receptacles20 x
Limited Warranty5 Year

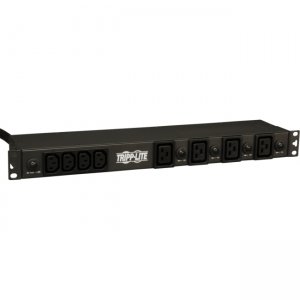

Tripp Lite's PDU1230 offers 208/240V power distribution with L6-30P input plug, 15-foot cord and 20 total output receptacles. Features 4 front-panel C19 outlets, each protected by separate 15A circuit breakers, 4 front-panel C13 outlets and 12 rear-panel C13 outlets protected in banks of 4 by 4 separate 10A circuit breakers. Detachable mounting flanges are configurable for wallmount, under-counter or 1U/0U rackmount installation. Uses only 1 rack space (1U) when installed in any 19-inch rack, with the potential for 0U vertical mounting in the cable area of most rack enclosures. Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes. Attractive housing with 8 front-facing and 12 rear-facing outlets measures only 5.2 inches in depth. Unfiltered electrical pass-through without a power switch makes the PDU1230 ideal for distributing alternate waveform UPS or generator power in rack enclosures.
