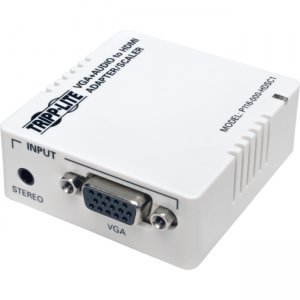

Tripp Lite P116-000-HDSC1 VGA with Audio to HDMI Converter/Scaler
Manufacturer: Tripp Lite
UPC: 037332188335
SKU: P116-000-HDSC1
Condition: New
Tripp Lite P116-000-HDSC1 VGA with Audio to HDMI Converter/Scaler
Product TypeSignal Converter
Brand NameTripp Lite
ManufacturerTripp Lite
Product ModelP116-000-HDSC1
Product NameVGA with Audio to HDMI Converter/Scaler
Manufacturer Part NumberP116-000-HDSC1
Manufacturer Website Addresshttp://www.tripplite.com
Green CompliantYes
Green Compliance Certificate/AuthorityRoHS
Package Contents
  • VGA with Audio to HDMI Converter/Scaler
  • External Power Supply (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5V, 2A), 4 ft.
  • Owner's Manual
Maximum Video Resolution1920 x 1440
Maximum Video Bandwidth165 MHz
Audio Line InYes
Number of HDMI Outputs1
VGA InYes
HDMI OutYes
Number of Audio Line In1
Number of VGA Inputs1
Height0.8"
Width2.2"
Depth2.4"
Weight (Approximate)13.44 oz
Input Voltage5 V DC
Limited Warranty1 Year
The P116-000-HDSC1 VGA with Audio to HDMI Converter/Scaler saves you money on costly computer upgrades by converting and upscaling a VGA video signal for viewing on an HDMI display. The built-in scaler allows you to display a rich high-definition signal in your home audio/video setups, media presentations or digital signage using your tried-and-true analog source equipment. The unit is ready to use right from the box with no software or drivers required. Connect the unit's female VGA video and 3.5 mm mini-stereo audio ports to your computer and the female HDMI port to your HDMI projector, monitor or television. The unit automatically upscales the video signal to 720p. Toggle the display to 1080p by pressing the button on the unit. In addition to high-definition video resolutions up to 1080p, the P116-000-HDSC1 supports computer video resolutions up to 1920 x 1440 (@ 60 Hz), HDMI bandwidth of 165 MHz (1.65 Gbps per channel) and 24-bit True Color (8 bits per channel).
