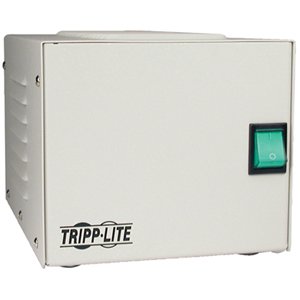

Tripp Lite IS500HG Surge suppressor
Manufacturer: Tripp Lite
UPC: 037332115898
Condition: New
Tripp Lite IS500HG Surge suppressor
Price $345.01
Package Contents
  • IS500HG Isolation Transformer
  • Instruction manual with warranty information
  • Product TypeSurge Suppressor
    Manufacturer Part NumberIS500HG
    Manufacturer Website Addresswww.tripplite.com
    ManufacturerTripp Lite
    Product NameIS500HG
    Product LineIncluded
    Dimensions5.60" Height x 6.25" Width x 9.25" Depth
    Weight22.20 lb
    Power Cord/Cable72"
    Input Voltage120 V AC
    Output Voltage120 V AC
    Current4.20 A Line Current
    Standard Warranty2 Year
    Dataline ProtectionNot Applicable
    Receptacles4 x NEMA 5-15R
    Plug/Connector TypeNEMA 5-15P
    Tripp Lite Isolator series UL2601-1 listed Hospital Grade isolation transformers offer line isolation, continuous noise filtering and enhanced common mode surge suppression. Internal low-impedance isolation transformer component offers 100% isolation from the input AC line. Full UL2601-1 medical grade listing with hospital-grade plug and outlet receptacles makes Isolator Hospital Grade transformers ideal for the protection of sensitive electronic equipment in patient-care areas. Isolation transformer with Faraday shield reduces the cumulative leakage current of the Isolator and connected equipment to levels below 300 microamps. Secondary neutral to ground bonding virtually eliminates common mode noise, providing an isolated neutral-ground reference for sensitive equipment and an inexpensive alternative to the installation of dedicated circuits and site electrical upgrades. Removes EMI/RFI noise, utility switching transients, and harmonics generated by other on-site loads and utility or lightning related surge conditions. Additional surge suppression components placed at the line input and output combined with full line isolation offers continuous filtering of a full range of power line noise in all modes. Active transformer filtering offers continuous common-mode noise rejection with no wearable parts, uniquely able to reduce surges in the worst of power environments to harmless levels. Reduces 6000V IEEE587 Cat A&B ring wave and combination wave test surges to only 0.5V common mode. Model IS500HG includes 4 widely spaced NEMA5-15R hospital grade output receptacles, a 6-ft power cord, hospital grade input plug, circuit breaker overload protection and lighted power switch. Rugged all-metal unit housing ships ready for placement in any industrial, medical, office or network environment.
