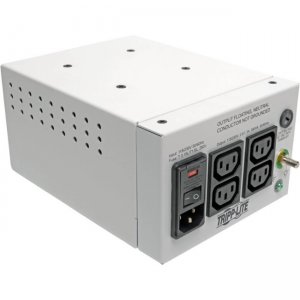

Tripp Lite IS300HGDV Isolator Isolation Transformer
Manufacturer: Tripp Lite
UPC: 037332199980
Condition: New
Tripp Lite IS300HGDV Isolator Isolation Transformer
Price $690.93
Product TypeIsolation Transformer
Brand NameTripp Lite
ManufacturerTripp Lite
Product ModelIS300HGDV
Product NameIsolator IS300HGDV Isolation Transformer
Product LineIsolator
Manufacturer Part NumberIS300HGDV
Manufacturer Website Addresshttp://www.tripplite.com
Environmentally FriendlyYes
Environmental CertificationRoHS
Package Contents
  • Isolator IS300HGDV Isolation Transformer
  • 2 x Fuse Sets (115V and 230V Operation)
  • Input/Output Cable Selector Data Sheet
  • Owner's Manual
Form FactorCabinet
Weight (Approximate)12.35 lb
Maximum Line Current3.15 A
Input Voltage120 V AC230 V AC
Output Voltage115 V AC230 V AC
Power Rating300 VA
Input ReceptaclesIEC 60320 C14
Output Receptacles4 x IEC 60320 C13
Limited Warranty2 Year
The IS300HGDV Isolator® Series Dual-Voltage 115/230V 300W 50/60Hz Medical-Grade™ Transformer with full CAN/ES/IEC/EN 60601-1 listing is ideal for protecting sensitive electronic equipment in patient-care vicinities. It can be configured for either step-up voltage, step-down voltage or pass-through voltage operation. Along with line isolation and continuous EMI/RFI line noise filtering, its surge protection rating of 240 joules suppresses excess voltage to prevent it from damaging connected equipment.An internal low-impedance isolation transformer component offers 100% isolation from the input mains AC line. Faraday shield reduces the cumulative leakage current of the IS300HGDV and connected equipment to levels less than 50 microamps, while removing utility switching transients and harmonics generated by other on-site loads and reducing the impact of utility or lightning related surge conditions. Transformer filtering provides continuous common-mode noise rejection with no wearable parts. The IS300HGDV reduces 6000V IEEE 587 Category A and B ring wave and combination wave test surges to only 0.5V common mode. Components connect to four C13 outlets with fuse overload protection and a lighted on/off switch. The rugged all-metal unit housing ships ready for placement in any industrial, medical, office, network or audio/video environment. Requires a C14-to-C13 AC input cord (sold separately).
