Tripp Lite IS250HG Isolator Isolation Transformer
Manufacturer: Tripp Lite
UPC: 037332116208
SKU: IS250HG
Condition: New

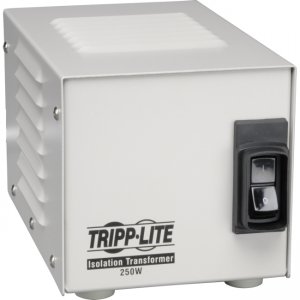

Tripp Lite IS250HG Isolator Isolation Transformer
Product TypeIsolation Transformer
Brand NameTripp Lite
ManufacturerTripp Lite
Product ModelIS250HG
Product NameIsolator IS250HG Isolation Transformer
Manufacturer Part NumberIS250HG
Manufacturer Website Addresshttp://www.tripplite.com
Package Contents
  • IS250HG
  • IS250HG Isolation Transformer
  • Instruction manual with warranty information
Height4.5"
Width4.8"
Depth7.8"
Form FactorTower
Current2.10 A
Input Voltage120 V AC
Output Voltage120 V AC Nominal
Power Rating250 VA
Input Receptacles1 x NEMA L5-15P
Output Receptacles2 x NEMA 5-15R
Limited Warranty2 Year
Isolator Series UL60601-1 Listed Medical Grade Isolation Transformers offer line isolation, continuous noise filtering and enhanced common mode surge suppression. An internal low-impedance isolation transformer component offers 100% isolation from the input AC line. Full UL60601-1 medical-grade listing with hospital-grade plug and outlet receptacles makes Isolator medical-grade transformers ideal for protection of sensitive electronic equipment in patient-care areas. Faraday shield reduces the cumulative leakage current of the Isolator and connected equipment to levels less than 100 microamps. Secondary neutral-to-ground bonding virtually eliminates common mode noise, providing an isolated neutral-ground reference for sensitive equipment, and an inexpensive alternative to dedicated circuits and site electrical upgrades. Removes EMI/RFI noise, utility switching transients and harmonics generated by other on-site loads and utility or lightning related surge conditions. Additional surge suppression components placed at the line input and output combined with full line isolation offer continuous filtering of a full range of power line noise in all modes. Active transformer filtering provides continuous common-mode noise rejection with no wearable parts. Unique ability to reduce surges in the worst of power environments to harmless levels. Reduces 6000V IEE
