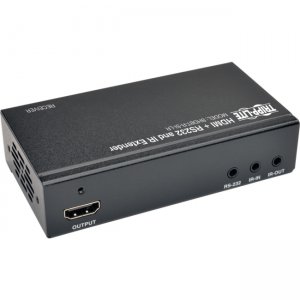

Tripp Lite BHDBT-R-SI-LR HDBaseT HDMI over Cat5e/6/6a Extender Receiver
Manufacturer: Tripp Lite
UPC: 037332187024
SKU: BHDBT-R-SI-LR
Condition: New
Tripp Lite BHDBT-R-SI-LR HDBaseT HDMI over Cat5e/6/6a Extender Receiver
Product TypeVideo Console
Brand NameTripp Lite
ManufacturerTripp Lite
Product ModelBHDBT-R-SI-LR
Product NameBHDBT-R-SI-LR HDBaseT HDMI over Cat5e/6/6a Extender Receiver
Manufacturer Part NumberBHDBT-R-SI-LR
Manufacturer Website Addresshttp://www.tripplite.com
Graphics Modes4K
Maximum Video Resolution3840 x 2160
Green CompliantYes
Green Compliance Certificate/AuthorityRoHSREACH
Package Contents
  • BHDBT-R-SI-LR HDBaseT HDMI over Cat5e/6/6a Extender Receiver
  • IR-IN Cable
  • IR-OUT Cable
  • 3.5 mm Male to DB9 Female Adapter Cable
  • 3.5 mm Male to DB9 Male Adapter Cable
  • External Power Supply (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5V, 3A)
  • Mounting Hardware
  • Owner's Manual
Twisted Pair Cable StandardCategory 6a
Media Type SupportedTwisted Pair
Maximum Operating Distance328 ft
Number of Output Devices Supported1
Connectivity TechnologyWired
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Serial PortYes
Number of HDMI Outputs1
HDMI OutYes
Height1.1"
Width4.5"
Depth2.5"
ColorBlack
Form FactorWall MountableRack-mountablePole-mountable
Weight (Approximate)8.80 oz
Limited Warranty1 Year
The BHDBT-R-SI-LR HDBaseT Extender Receiver works in tandem with the Tripp Lite BHDBT-Series matrix transmitter in your HDBaseT installation to extend uncompressed HDMI video and audio, RS-232 serial and IR remote control signals. Using a single Cat5e/6/6a cable, the BHDBT-R-SI-LR can extend a 1920 x 1080(1080p) signal at 60 Hz or an Ultra High Definition(UHD) 3840 x 2160(4K x 2K) video signal up to 328 feet(100 m). To further extend and expand your installation, you can insert up to five BHDBT-TR-SI-LR Extender Transceivers between the receiver and transmitter for a total range up to 2,000 feet(610 m) with a monitor connected to each transceiver.You can control RS-232 serial devices, such as touchscreen displays or scanners, at baud rates up to 115 Kbps. The 2-way IR Remote Control feature(@ 39 KHz) lets you also control your Blu-ray player using its remote when at the remote monitor and vice versa. The monitor connects to the rear locking HDMI port(ideal for use with Tripp Lite's P569-006-LOCK High-Speed HDMI cables with locking connectors) that prevents the cable from coming loose or undone, ensuring an intact signal.The BHDBT-R-SI-LR supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video, EDID and HDCP. Included mounting hardware lets you attach the receiver to a wall, rack or pole. Sets up quickly with no software to download or install.
