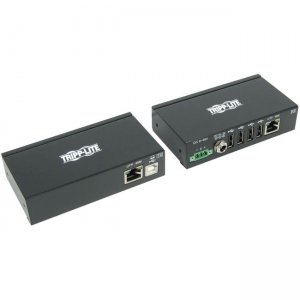

Tripp Lite B203-104-IND Video Extender Transmitter/Receiver
Manufacturer: Tripp Lite
UPC: 037332256089
SKU: B203-104-IND
Condition: New
Tripp Lite B203-104-IND Video Extender Transmitter/Receiver
Price $172.82
Product Type Video Extender Transmitter/Receiver
Brand Name Tripp Lite
Manufacturer Tripp Lite
Product Name Video Extender Transmitter/Receiver
Manufacturer Part Number B203-104-IND
Manufacturer Website Address http://www.tripplite.com
Environmentally Friendly Yes
Environmental Certification RoHS REACH
TAA Compliant Yes
Package Contents
  • 1 x Transmitter
  • 1 x Receiver
  • 2 x DIN rail mounts
  • 4 x M4 screws
  • RS-232 Phoenix adapter
  • International Power Supply (Input: 100-240V, 50/60 Hz, 0.35A; Output: 5V 2A)
  • 4 x Plug adapters (North America, Europe, U.K., Australia)
  • Owner's Manual
Twisted Pair Cable Standard Category 6
Media Type Supported Twisted Pair
Maximum Operating Distance 150 ft
Number of Output Devices Supported 4
Number of Input Devices Supported 1
Connectivity Technology Wired
USB Yes
Number of Network (RJ-45) Ports 2
Network (RJ-45) Yes
Number of USB Ports 5
Transmitter Height 4.53"
Transmitter Width 2.46"
Transmitter Depth 1.06"
Receiver Height 4.53"
Receiver Width 2.46"
Receiver Depth 1.06"
Transmitter Weight (Approximate) 1 lb
Receiver Weight (Approximate) 1 lb
Color Black
Form Factor Rack-mountable
Limited Warranty 1 Year
FeaturesIndustrial-Grade Extender Connects Your Computer to a USB Device up to 150 ft. Away This plug-and-play extender kit with heavy-duty all-metal housings is ideal for connecting your office computer's USB-A port to a printer, 1080p webcam, external hard drive or other USB devices located up to 150 feet (45 meters) away. The B203-104-IND includes a local transmitter and a remote receiver that extends USB 2.0 signals over user-supplied Cat5/6 cabling (such as Tripp Lite's N202-Series Cat6 Ethernet cables). Protects Your Devices against Electrostatic Discharge (ESD) Machines on the shop floor can generate electrostatic discharges, wiping out data and damaging sensitive electronics. This extender kit provides ESD protection to ±15 kV, reducing potential static damage to your connected USB peripherals. The durable metal transmitter and receiver units withstand harsh physical conditions in industrial and commercial applications, such as factories, construction sites, supply rooms and warehouses. With Great Distance Comes Great Flexibility By extending the USB connection beyond the standard 16-foot distance limitation to 150 feet, the B203-104-IND provides workstation flexibility to place your computer and the USB devices where they are best suited. This extender kit supports USB 2.0 data transfer rates up to 480 Mbps and is backward compatible with USB 1.1 technology, allowing you to connect legacy devices. No network connectivity is needed. Plug-and-Play Kit Offers Flexible Power and Installation Options With user-supplied USB cables, connect the transmitter to your computer and the receiver to your USB peripheral. Connect the transmitter and receiver with a user-supplied Cat5/6 cable (all cables sold separately). The extender kit requires no software to download and install. The metal chassis rest easily on any flat surface or mount to a wall or DIN rail using the included hardware. A power supply with international plug adapters as well as a RS-232 Phoenix adapter supporting a DC voltage range from 9-36V is included for connecting external power to the unit as needed. TAA-Compliant for GSA Schedule Purchases The B203-104-IND is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts. Typical Applications Connect an impact printer, 1080p webcam and other USB devices using existing in-wall Cat5/6 wiring to a computer, laptop or server located in another room Place the computer or server in a locked cabinet or closet to protect against tampering Mount to a wall or DIN rail in a harsh environment, such as a factory, construction site, supply room or warehouse System Requirements Computer, laptop or server with USB-A port Cat5/5e/6/6a cabling Any major operating system, including Windows, Mac OS and Chrome
