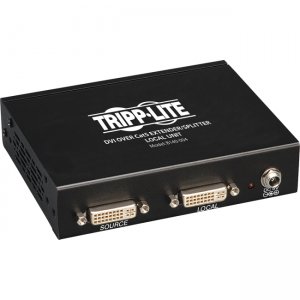

Tripp Lite B140-004 DVI over Cat5 Extender/Splitter, 4-Port Local Transmitter Unit
Manufacturer: Tripp Lite
UPC: 037332156693
SKU: B140-004
Condition: New
Tripp Lite B140-004 DVI over Cat5 Extender/Splitter, 4-Port Local Transmitter Unit
Product TypeVideo Extender
Brand NameTripp Lite
ManufacturerTripp Lite
Product ModelB140-004
Product NameDVI over Cat5 Extender/Splitter, 4-Port Local Transmitter Unit
Manufacturer Part NumberB140-004
Manufacturer Website Addresshttp://www.tripplite.com
Graphics ModesFull HD
Maximum Video Resolution1920 x 1080
Green CompliantYes
Green Compliance Certificate/AuthorityRoHS
Package Contents
  • B140-004 DVI Over Cat5 Extender/Splitter, 4-Port Local Transmitter Unit
  • 1 ft. DVI Daisychain Cable
  • Mounting Hardware
  • External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
  • Owner's Manual
Twisted Pair Cable StandardCategory 6
Media Type SupportedTwisted Pair
Maximum Operating Distance200 ft
Number of Output Devices Supported5
Number of Input Devices Supported1
Connectivity TechnologyWired
Number of Network (RJ-45) Ports4
Network (RJ-45)Yes
DVI InYes
Number of DVI Inputs2
Height1.1"
Width5"
Depth4"
ColorBlack
Limited Warranty1 Year Limited
The B140-004 transmits a DVI-D Single-Link signal to four monitors up to 200 ft. away using a single Cat5e/6 patch cable. To achieve maximum distance and resolution, use 24AWG Solid Wire Cat5e/6 cable (Tripp Lite's N202-Series). An additional DVI port is provided for the connection of a local monitor. This local DVI port can also be used to daisychain up to 3 units together, allowing for the connection of up to 13 monitors (12 remote, 1 local). Mounting hardware is included that allows the unit to be rackmounted, wallmounted or pole mounted. In addition, up to three units can be mounted in 1U of rack space using a Tripp Lite B132-004-RB 19" rackmount bracket. The B140-002 is compatible with all operating systems, and is plug and play, with no software or drivers required. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.Installation is simple. Connect the B140-004 transmitter to a DVI source using a Tripp Lite P561-Series DVI cable (not included). Connect a Tripp Lite B140-series receiver (not included) to each display using a Tripp Lite P561-Series DVI cable (not included). Finally, each remote receiver is connected to an RJ45 port on the B140-004 using a single Cat5e/6 cable.For longer extension distances, use a B140-1A0 or B140-1A0-WP active receiver unit to extend a 1920 x 1080 @ 60Hz signal up to 150 ft., or a 1024 x 768 @ 60Hz signal up to 200 ft..For shorter extension distances, use a B140-1P0 or B140-1P0-WP passive receiver unit to extend a 1920 x 1080 @ 60Hz signal up to 50 ft., or a 1024 x 768 @ 60Hz signal up to 100 ft..Further expand the range and number of monitors by using a B140-110 repeater unit. Add up to four remote units (three repeaters and one active receiver) to each channel of the B140-004, for a total of 4 displays per channel. (An active receiver should be the last unit in a channel) A 1920 x 1080 @ 60Hz signal can be extended up to 125 ft. from each repeater to the next unit in the channel, or a 1024 x 768 @ 60Hz signal can be extended up to 175 ft..
