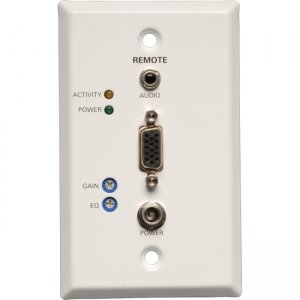

Tripp Lite B132-100A-WP-1 TAA/GSA Compliant Wallplate Video Console
Manufacturer: Tripp Lite
UPC: 037332160096
SKU: B132-100A-WP-1
Condition: New
Tripp Lite B132-100A-WP-1 TAA/GSA Compliant Wallplate Video Console
Product TypeVideo Console
Brand NameTripp Lite
ManufacturerTripp Lite
Product ModelB132-100A-WP-1
Product NameB132-100A-WP-1 TAA/GSA Compliant Wallplate Video Console
Manufacturer Part NumberB132-100A-WP-1
Manufacturer Website Addresshttp://www.tripplite.com
Green CompliantYes
Green Compliance Certificate/AuthorityRoHS
Package Contents
  • B132-100A-WP-1 TAA/GSA Compliant Wallplate Video Console
  • Mini-Screwdriver
  • Wallplate Screws
  • External Power Supply
  • Owner's Manual
Maximum Video Resolution1920 x 1440
Twisted Pair Cable StandardCategory 6
Media Type SupportedTwisted Pair
Maximum Operating Distance1000 ft
Number of Output Devices Supported1
Number of Input Devices Supported1
Connectivity TechnologyWired
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of VGA Outputs1
VGA OutYes
Height4.5"
Width2.8"
Depth1"
ColorWhite
Form FactorWall Mountable
Weight (Approximate)8 oz
Limited Warranty1 Year Limited
Tripp Lite's B132-100A-WP-1 works with a B132-002A or B132-004A local unit to extend a 1920 x 1440 (60Hz) Video and Stereo Audio signal up to 500 ft., or a 1024 x 768 (60Hz) Video and Stereo Audio signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable. For optimal video image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K. Features built-in Equalization and Gain controls to adjust the video image. RJ45 type wallplate allows you to use standard patch cable, eliminating the need for a 110 punchdown connection. Ideal for digital signage situations, such as retail, schools, churches, etc. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. 1 year limited warranty.
