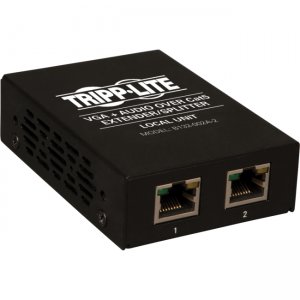

Tripp Lite B132-002A-2 VGA + Audio over Cat5 Extender 2-Port Transmitter
Manufacturer: Tripp Lite
UPC: 037332178411
SKU: B132-002A-2
Condition: New
Tripp Lite B132-002A-2 VGA + Audio over Cat5 Extender 2-Port Transmitter
Product TypeVideo Extender
Brand NameTripp Lite
ManufacturerTripp Lite
Product ModelB132-002A-2
Product NameVGA + Audio over Cat5 Extender 2-Port Transmitter
Manufacturer Part NumberB132-002A-2
Manufacturer Website Addresshttp://www.tripplite.com
Green CompliantYes
Green Compliance Certificate/AuthorityRoHS
Package Contents
  • VGA + Audio over Cat5 Extender 2-Port Transmitter
  • Mounting Hardware
  • External Power Supply (Input: 100-240V, 50/60Hz, 1.5A Output: 12.6V, 3A)
  • Owner's Manual
Maximum Video Resolution1920 x 1440
Twisted Pair Cable StandardCategory 6
Media Type SupportedTwisted Pair
Maximum Operating Distance1000 ft
Number of Input Devices Supported1
Connectivity TechnologyWired
Number of Network (RJ-45) Ports2
Network (RJ-45)Yes
VGA InYes
Number of VGA Inputs1
Height1"
Width2.5"
Depth3.7"
ColorBlack
Form FactorWall MountableRack-mountablePole-mountable
Weight (Approximate)7.20 oz
Limited Warranty1 Year
Tripp Lite's B132-002A-2 allows you to split a single VGA Video and Audio signal into 2. Along with a B132-100A or B132-100A-WP-1 remote receiver unit, you can extend a 1920 x 1440 (60Hz) Video and Audio signal up to 500 ft., or a 1024 x 768 (60Hz) Video and Audio signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6).The range and number of monitors/speakers can be further expanded by adding B132-110A repeater units. Connect up to 4 remote units in a repeater chain (3 repeaters and 1 receiver), with a set of monitor and speakers at each location. A 1920 x 1440 (60Hz) Video and Audio signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) Video and Audio signal can be extended up to 1,000 ft. from the first repeater in the chain to the last receiver.For optimal video image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K. The transmitter unit features functionality that allows for the EDID information from a connected display to be copied and sent to the connected computer, providing optimal compatibility. Includes mounting hardware that allows unit to be wallmounted, rackmounted or pole mounted. Ideal for digital signage situations, such as retail, schools, churches, etc. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
