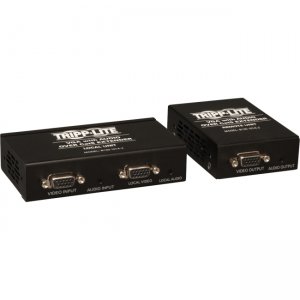

Tripp Lite B130-101A-2 VGA + Audio over Cat5 Extender Kit (Transmitter + Receiver)
Manufacturer: Tripp Lite
UPC: 037332178398
SKU: B130-101A-2
Condition: New
Tripp Lite B130-101A-2 VGA + Audio over Cat5 Extender Kit (Transmitter + Receiver)
Product TypeVideo Console/Extender
Brand NameTripp Lite
ManufacturerTripp Lite
Product ModelB130-101A-2
Product NameVGA + Audio over Cat5 Extender Kit (Transmitter + Receiver)
Manufacturer Part NumberB130-101A-2
Manufacturer Website Addresshttp://www.tripplite.com
Green CompliantYes
Green Compliance Certificate/AuthorityRoHS
Package Contents
  • Local (Transmitter) Unit
  • Remote (Receiver) Unit
  • Mini-Screwdriver for EQ/Gain Adjustment
  • 2 x Mounting Hardware Kits
  • 2 x External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
  • Owner's Manual
Maximum Video Resolution1920 x 1440
Twisted Pair Cable StandardCategory 6
Media Type SupportedTwisted Pair
Maximum Operating Distance1000 ft
Number of Output Devices Supported2
Number of Input Devices Supported1
Connectivity TechnologyWired
Number of Network (RJ-45) Ports2
Network (RJ-45)Yes
Number of VGA Outputs2
VGA InYes
VGA OutYes
Number of VGA Inputs1
ColorBlack
Form FactorWall MountableRack-mountablePole-mountable
Limited Warranty1 Year
Tripp Lite's B130-101A-2 allows you to extend a 1920 x 1440 (60Hz) video and audio signal up to 500 ft., or a 1024 x 768 (60Hz) video and audio signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6). The range and number of monitors/speakers can be further expanded by adding B132-110A repeater units. Connect up to 3 repeaters, with the B130-101A-2 receiver at the end of the chain, for a total of 4 sets of monitors and speakers. A 1920 x 1440 (60Hz) Video and Audio signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) Video and Audio signal can be extended up to 1,000 ft. from the first repeater in the chain to the last receiver. For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K. The transmitter unit features functionality that allows for the EDID information from a connected display to be copied and sent to the connected computer, providing optimal compatibility. The remote (Receiver) unit features built-in Equalization and Gain controls to adjust the video image. Includes mounting hardware for both local and remote units, allowing them to be wallmounted, rackmounted or pole mounted. Ideal for digital signage situations, such as retail, schools, churches, etc.
