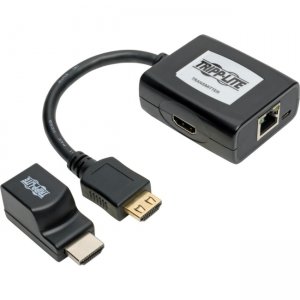

Tripp Lite B126-1P1M-U-POC HDMI over Cat5/Cat6 Extender Kit, Power over Cable, 1080p @ 60 Hz, TAA
Manufacturer: Tripp Lite
UPC: 037332201003
SKU: B126-1P1M-U-POC
Condition: New
Tripp Lite B126-1P1M-U-POC HDMI over Cat5/Cat6 Extender Kit, Power over Cable, 1080p @ 60 Hz, TAA
Product TypeVideo Extender Transmitter/Receiver
Brand NameTripp Lite
ManufacturerTripp Lite
Product ModelB126-1P1M-U-POC
Product NameHDMI over Cat5/Cat6 Extender Kit, Power over Cable, 1080p @ 60 Hz, TAA
Manufacturer Part NumberB126-1P1M-U-POC
Manufacturer Website Addresshttp://www.tripplite.com
Graphics ModesFull HD
Maximum Video Resolution1920 x 1080
Twisted Pair Cable StandardCategory 6a
Media Type SupportedTwisted Pair
Maximum Operating Distance100 ft
Number of Output Devices Supported1
Number of Input Devices Supported1
Connectivity TechnologyWired
Number of Network (RJ-45) Ports2
Network (RJ-45)Yes
Number of HDMI Inputs1
HDMI InYes
HDMI OutYes
TAA CompliantYes
Package Contents
  • Transmitter Unit
  • Receiver Unit
  • USB Micro-B cable, 1 ft.
  • USB Micro-B cable, 3 ft.
  • Owner's Manual
Limited Warranty1 Year
The B126-1P1M-U-POC HDMI over Cat5/Cat6 Extender Kit includes a transmitter and a low-profile receiver that work in tandem to extend an HDMI audio/video signal to a projector, monitor or television. The kit is recommended for digital signs, trade shows, classrooms, churches, offices, retail settings and other applications where the source is located farther than conventional cables allow. HDMI cable (see Tripp Lite's P568-Series) connects the audio/video source, such as a Blu-ray™ player, and optional local display to the transmitter's HDMI ports. Cat5e/6/6a cable connects the transmitter to the receiver's RJ45 port (for best results, use 24 AWG solid-wire Cat6 cable, such as Tripp Lite's N202-Series). The receiver plugs directly into the display's HDMI input port. Built-in PoC technology powers the receiver over Cat5e/6/6a cable, so no external power supply on the display side is needed.The B126-1P1M-U-POC can extend a high-definition 1080p (at 60 Hz) signal up to 50 feet and a 1080i signal up to 100 feet. In addition to crystal-clear video, the B126-1P1M-U-POC delivers full, rich audio up to 7.1-channel surround sound (multi-channel or PCM) and supports 3D and HDCP standards. Easy to set up with no software or drivers to install. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
