Tripp Lite B119-4X4 4x4 High Speed HDMI Video Matrix Switch with Audio 1920x1200 at 60Hz / 1080p
Manufacturer: Tripp Lite
UPC: 037332180179
SKU: B119-4X4
Condition: New
Tripp Lite B119-4X4 4x4 High Speed HDMI Video Matrix Switch with Audio 1920x1200 at 60Hz / 1080p
Product TypeAudio/Video Switchbox
Brand NameTripp Lite
ManufacturerTripp Lite
Product ModelB119-4X4
Product Name4x4 High Speed HDMI Video Matrix Switch with Audio 1920x1200 at 60Hz / 1080p
Manufacturer Part NumberB119-4X4
Manufacturer Website Addresshttp://www.tripplite.com
Graphics ModesFull HD
Maximum Video Resolution1920 x 1080
Green CompliantYes
Green Compliance Certificate/AuthorityRoHS

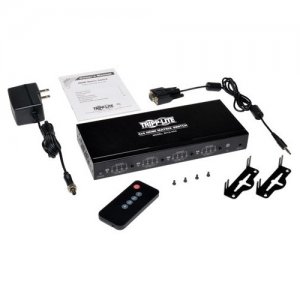

Package Contents
  • 4x4 High Speed HDMI Video Matrix Switch with Audio 1920x1200 at 60Hz / 1080p
  • External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 3A)
  • 3.5 mm to DB9 Adapter Cable
  • Mounting Hardware
  • Remote Control
  • Owner's Manual
Number of HDMI Inputs4
Number of HDMI Outputs4
HDMI InYes
HDMI OutYes
Number of Displays Supported4
Number of Input Devices Supported4
Device SupportedDisplay
Height1.2"
Width9.2"
Depth3.9"
Weight (Approximate)1.45 lb
Limited Warranty1 Year
Tripp Lite B119-4X4 is a 4x4 HDMI Matrix Switch that routes high definition video from any four HDMI sources to any four HDMI displays. It supports video resolutions up to 1920 x 1080 (1080p) @ 60Hz. The 4x4 Matrix eliminates the need to disconnect and reconnect HDMI sources. It works with any HDMI source that connects to an HDMI display, and each source is accessible at all times by any display by selecting it with an IR remote, or using the RS232 port to switch the unit. More from the Manufacturer
