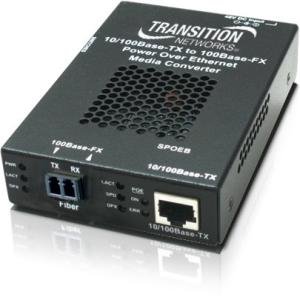

Transition Networks SPOEB1013-105-NA Stand-alone Fast Ethernet PoE Media Converter SPOEB10xx-105
Manufacturer: Transition Networks
Mfg Number: SPOEB10xx-105
UPC: 648177039821
SKU: SPOEB1013-105-NA
Condition: New
Transition Networks SPOEB1013-105-NA Stand-alone Fast Ethernet PoE Media Converter SPOEB10xx-105
Product TypeTransceiver/Media Converter
Brand NameTransition Networks
ManufacturerTransition Networks, Inc
Product ModelSPOEB10xx-105
Product NameStand-alone Fast Ethernet PoE Media Converter
Manufacturer Part NumberSPOEB1013-105-NA
Manufacturer Website Addresshttp://www.transition.com
Green CompliantYes
Green Compliance Certificate/AuthorityRoHSWEEE
Package Contents
  • Stand-alone Fast Ethernet PoE Media Converter
  • Power Supply
Ethernet TechnologyFast Ethernet
Network Technology10/100Base-TX100Base-FX
Network (RJ-45)Yes
Management PortNo
Number of PoE (RJ-45) Ports1
Number of SC Ports1
Total Number of Ports2
SC Port TypeDuplex
Media Type SupportedOptical FiberTwisted Pair
Fiber Mode SupportedMulti-mode
Fiber Optic Wavelength1300 nm
Maximum Distance Supported1.24 Mile
Form FactorWall Mountable
Weight (Approximate)2 lb
Power SourcePower Supply
Limited WarrantyLifetime
SPOEB10xx-105 is a 10/100 Ethernet copper to fiber PoE media converter that enables enterprises to provide power to network devices over the existing CAT5 data connection. Transition Networks' AC powered PoE media converters combine data received over a fiber optic link with-48 VDC power; providing power to Data Terminal Equipment (DTE) Power Devices (PD) over unshielded twisted pair cable. The PoE converters are Power Sourcing Equipment (PSE) and are fully compatible with Powered Devices (PD) that comply with the IEEE 802.3af: 2003 standard. The converters also include a PD signature sensing and power monitoring features per the IEEE 802.3af standard. Other features include Over-Current Protection, Under-Current Detection and Fault Protection Input. This feature enhanced model offers the ability to enable/disable many of the features as well as force port capabilities.In addition, with the PSE/LPT switch enabled, a loss of Fiber RX will disable PSE power output on the UTP port for 2 seconds to allow remote device to re-initialize. (Also known as Powered Device Reset.)The PoE converter is fully compatible with devices that comply with the IEEE802.3af standard. The PoE converter is capable of inserting power on data pairs or spare pair of the MDI.
