Supermicro SYS-2029BT-HNTR SuperServer (Black)
Manufacturer: Supermicro
Condition: New
Supermicro SYS-2029BT-HNTR SuperServer (Black)
Product TypeBarebone System
Brand NameSupermicro
ManufacturerSupermicro Computer, Inc
Product Model2029BT-HNTR
Product NameSuperServer 2029BT-HNTR (Black)
Product LineSuperServer
Manufacturer Part NumberSYS-2029BT-HNTR
Manufacturer Website Addresshttp://www.supermicro.com
Environmentally FriendlyYes
Environmental CertificationRoHS
Package Contents
  • SuperServer 2029BT-HNTR (Black)

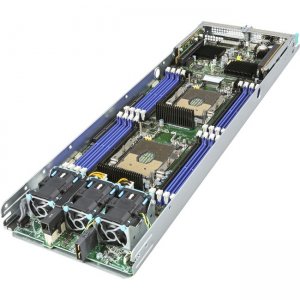

  • 4 x Super X11DPT-B Motherboard
  • 1 x 2U Chassis
  • 4 x Hybrid BPN to support 4 SATA and/or NVMe in addition to 2 SATA ports,HF,RoHS
  • 1 x 2U 4-Node 24-Port Backplane Supports 2x2.5" SATA3/SAS3 SSD/HDD and 4x2.5" SATA3/SAS3/NVMe Stoage Media per Node
  • 2 x PWCD,US,IEC60320 C14 TO C13,3FT,14AWG
  • 8 x Black Gen3 hot-swap 2.5 inch HDD tray with lock improved EMI
  • 16 x Black Gen3 hot-swap 2.5 inch HDD tray with lock, orange tab
  • 1 x 217B BigTwin type I (Impact) BPN retention bkt w/ foam assy
  • 4 x Bigtwin air box for X11DPT-B(4pcs/set)
  • 4 x Bigtwin 2U4N plastic air shroud (2pcs) for Cascade lake MB
  • 1 x 2029BT-H(N/T/NC0)R Quick Reference Guide
  • 4 x RSC-P-6 (1U LHS TwinPro RSC with 1 PCI-Ex16),RoHS
  • 4 x 1U RHS TwinPro Riser card with one PCI-E x16 slot
  • 4 x 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
  • 4 x 1U Passive CPU Heat Sink with a 26-mm Wide Middle Air Channel for X11 Purley Platform Equipped with a Narrow Retention Mechanism
  • 2 x 1U 2200W Redundant Power Supply Titanium, 45(W) X 40(H) X 48
64-bit ProcessingYes
Chipset ManufacturerIntel
Chipset ModelC621
Number of Nodes4
Number of Processors Supported2
Processor SocketSocket P LGA-3647
Processor SupportedXeon PlatinumXeon GoldXeon SilverXeon Bronze
Graphics Controller ManufacturerASPEED
Graphics Controller ModelAST2500
Number of Power Supplies Installed2
Maximum Power Supply Wattage2200 W
Input Voltage230 V AC
Number of Internal 2.5" Bays6
Number of Total Expansion Bays6
Number of Total Expansion Slots3
Number of PCI Express x16 Slots2
Number of Total Memory Slots24
Intel Optane Memory ReadyYes
Memory StandardDDR4-2933/PC4-23466
Memory TechnologyDDR4 SDRAM
Maximum Memory6 TB
Ethernet TechnologyGigabit Ethernet
Total Number of USB Ports2
Number of USB 3.0 Ports2
Rack Height2U
Form FactorRack-mountable
Weight (Approximate)54.50 lb
Controller TypeSerial ATA
Limited Warranty3 Year
The Supermicro BigTwin™ is the first and only 2U multi-node system supporting the highest performance processor, memory, storage, I/O and an incredible 30% better thermal capacity. The 5th generation of Supermicro's Twin architecture is fully optimized for today's diverse workloads and architected for further technology breakthroughs. Performance: Supporting the 2nd generation Intel® Xeon® Scalable processors up to 205W, the BigTwin achieves incredible performance in a 2U multi-node platform. Each node of the BigTwin supports up to 6TB DDR4-2933MHz in 24 DIMM slots for dramatically faster and increased memory capacity compared to previous generations of Twin systems, as well as support for Intel® Optane™ DC Persistent Memory. With up to 12 hot-swappable 2.5" drive bays per node, storage performance is accelerated with options for All-Flash NVMe, SAS or SATA drives. Density: BigTwin systems boast incredibly high density with up to 4 hot swappable nodes in a 2U form factor, and double the I/O capacity of competitive 2U solutions. Support for Supermicro I/O Module (SIOM) enables flexible networking options of 1G, 10G, 25G, or 100G Ethernet or 100G InfiniBand/Omni-Path and frees up 2 low-profile PCI-E 3.0 x16 expansion slots per node. Efficiency: Supermicro's Twin architecture is designed with power and cost efficiency in mind. The BigTwin reduces power consumption with shared cooling and power design, leveraging redundant 2200W high efficiency (96%) power supplies. Maximum compute in a 2U system enables data center footprints to be reduced by 50% compared to standard 2U servers with equivalent performance.
