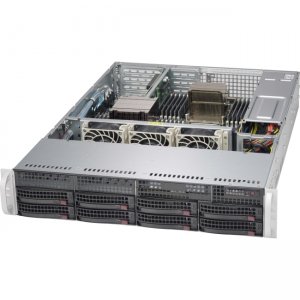

Supermicro CSE-836BE16-R1K28B SuperChassis System Cabinet SC836BE16-R1K28B
Manufacturer: Supermicro
Mfg Number: SC836BE16-R1K28B
UPC: 672042106592
SKU: CSE-836BE16-R1K28B
Condition: New
Supermicro CSE-836BE16-R1K28B SuperChassis System Cabinet SC836BE16-R1K28B
Product TypeComputer Case
Product SeriesSC836
Brand NameSupermicro
ManufacturerSupermicro Computer, Inc
Product ModelSC836BE16-R1K28B
Product NameSuperChassis SC836BE16-R1K28B System Cabinet
Product LineSuperChassis
Manufacturer Part NumberCSE-836BE16-R1K28B
Manufacturer Website Addresshttp://www.supermicro.com
Number of Fans Supported5
Number of Fans Installed5
Motherboard SupportedATXEATX
Number of External 3.5" Bays16
Number of Total Expansion Bays16
Compatible Rack Unit3U
Form FactorRack-mountable
Number of Power Supplies Supported2
Number of Power Supplies Installed2
Power Supply Wattage1.28 kW
Number of Total Expansion Slots7
Total Number of USB Ports2
Package Contents
  • SuperChassis SC836BE16-R1K28B System Cabinet
  • 1 x Chassis Accessory Box
  • 1 x 1836 backplane with single LSI SAS2X28 expander chip
  • 1 x PDB with longer 24pin for SC826B
  • 1 x SC835/836/936 Intel DP X9, X8 PC air shroud 1368x13/12x13MB
  • 1 x Accessories Box for SC836 with two power cords and FDD acc.
  • 1 x ROUND 16 TO 16 PIN RIBBON FP CABLE 30"(76cm)
  • 1 x Black DVD dummy cover for SC825, 836
  • 1 x Black USB/COM port tray for SC825, 836
  • 1 x 836B rear dummy cover for 2 X 2.5" HDD cage
  • 16 x Black gen 5.5 hot-swap 3.5" HDD tray
  • 1 set x Silver chassis handle for SC836
  • 1 x Rail screw bag
  • 1 x Rail set, quick/quick, default for 2,3U 17.2"W
  • 1 x 836B rear window which support 2 X 2.5" HDD module
Limited Warranty3 Year
3U SuperChassis 836Supermicro's SC836 storage chassis supports up to 16 hot-swappable 3.5" SAS/SATA hard drive bays, the industry's highest storage density for a 3U system. With 100% cooling redundancy* and high efficiency (1+1) redundant 800W or 1200W (93%) Gold Level power supplies with PM BUS functionality for enhanced power management, the SC836 is optimized for the next-generation dual-processor Intel® Xeon® (5500 series) and AMD Opteron™ platforms. Direct attached HDD backplane (TQ version), multilane backplane (A version) and expanders' backplane (E1, E2 versions) are available for application specific solution optimization. Heavy duty palletized packaging is available to ensure secure system reliability during shipping and tool-less, roller rail designs for easy installation and maintenance are standard with each system.
