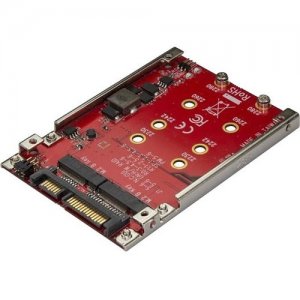

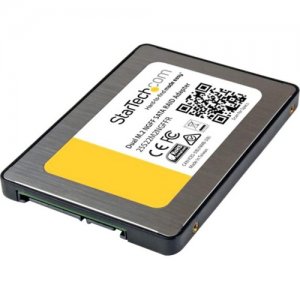

StarTech.com 25S22M2NGFFR Dual M.2 NGFF SATA Adapter With RAID
Manufacturer: StarTech.com
UPC: 065030863315
SKU: 25S22M2NGFFR
Condition: New
StarTech.com 25S22M2NGFFR Dual M.2 NGFF SATA Adapter With RAID
Product TypeDAS Array
Brand NameStarTech.com
ManufacturerStarTech.com
Product NameDual M.2 NGFF SATA Adapter With RAID
Manufacturer Part Number25S22M2NGFFR
Manufacturer Website Addresshttp://www.startech.com
Packaged Quantity1
Green CompliantYes
Green Compliance Certificate/AuthorityWEEERoHS
Country of OriginTaiwan
Package Contents
  • Dual M.2 NGFF SATA Adapter With RAID
  • 2 x M.2 Drive Mount Hardware
  • 4 x Screws
  • 1 x Mini Screwdriver
  • 1 x Quick Start Guide
Number of Solid State Drive Supported2
Drive InterfaceM.2
Host InterfaceSATA/600
Height0.3"
Width2.7"
Depth3.9"
Form FactorInternal
Weight (Approximate)1.90 oz
RAID Levels0, 1, Concatenation, JBOD
Controller TypeSerial ATA/600
Limited Warranty2 Year
Install two M.2 NGFF SSDs into a 2.5" bay to create high-performance storage with configurable RAID. Boost your system performance by enhancing the capacity, speed and security of your data storage. This two-drive M.2 to SATA adapter lets you install two M.2 solid-state drives in a single 2.5" drive bay and configure a powerful RAID array.Build a RAID array to enhance system performanceThe dual M.2 to SATA adapter supports multiple RAID modes (RAID 0, 1, BIG) helping you to achieve greater SSD capacity or data redundancy, depending on your selected RAID mode. The SSD adapter also supports non-RAID operation (JBOD) when paired with a port-multiplying SATA controller, so both drives can be used independent of one another.Maximize file transfer speedsThe dual SSD adapter lets you utilize the full potential of your SATA III controller. Using M.2 SSDs in place of a platter drive reduces your data transfer bottlenecks and gives you file transfer speeds of up to 6 Gbps. M.2 SSDs also save you money by reducing your power consumption over regular platter drives.The M.2 NGFF SATA RAID adapter also provides TRIM support to enhance the stability and performance of your M.2 NGFF SSDs.Get dependable drive protectionThe M.2 to SATA adapter features an enclosed housing that helps protect your NGFF (Next Generation Form Factor) SSD. The added protection gives you peace of mind when you are using your M.2 drives in applications that require an added level of durability such as hot-swap drive bays, or external SATA docking stations.The 25S22M2NGFFR is backed by a StarTech.com 2-year warranty and free lifetime technical support.
