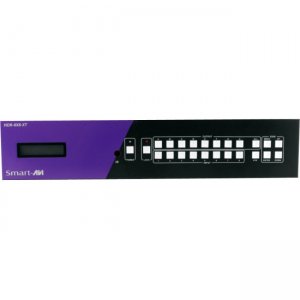

SmartAVI HDR-8X8-XTS 4K-Ready 8x8 HDMI Matrix with CAT5/6/7 HDBaseT
Manufacturer: SmartAVI
UPC: 0813280020855
Condition: New
SmartAVI HDR-8X8-XTS 4K-Ready 8x8 HDMI Matrix with CAT5/6/7 HDBaseT
Product TypeAudio/Video Switchbox
Brand NameSmartAVI
ManufacturerSmart Audio Video Innovation
Product Name4K-Ready 8x8 HDMI Matrix with CAT5/6/7 HDBaseT
Manufacturer Part NumberHDR-8X8-XTS
Manufacturer Website Addresshttp://www.smartavi.com
Graphics Modes4K
Maximum Video Resolution3840 2160
Environmentally FriendlyYes
Environmental CertificationRoHS
Country of OriginUnited States
Package Contents
  • 4K-Ready 8x8 HDMI Matrix with CAT5/6/7 HDBaseT
  • 1 x Power Cable (for internal power supply)
  • 1 x Quick Start/Installation Guide
  • IR Remote
Number of HDMI Inputs8
Number of HDMI Outputs8
Connectivity (RJ-45)Yes
Number of Connectivity (RJ-45) Ports8
Media Type SupportedTwisted PairCoaxial
Number of Displays Supported8
Number of Input Devices Supported8
Connectivity TechnologyCable
Device SupportedDisplayComputer
Weight (Approximate)14.65 lb
What is the HDR-88-XT The HDR-88-XT is an 88 matrix switch enhanced with HDBaseT technology. Users can send eight ultra-HD video sources to eight local displays over HDMI, as well as eight remote displays over CAT5e/6/7 cables up to 328 ft away when paired with receiver units (supports HDX-POE and HDX-POE-PRO*, each sold separately). Doubling as a transmitter extension unit, the HDR-88-XT sends 4K (38402160) resolution video further that standard matrix units and effectively cuts costs by utilizing inexpensive CAT5e/6/7 cabling. It also routes internet to remote smart TVs over HDBaseT and power to connected receivers through POE (Power-over-Ethernet). How to control HDR-88-XT Users can easily control the HDR-88-XT using: Front Panel Buttons which offer intuitive signal switching capabilities directly from the unit itself. RS-232 commands from devices that are connected to the unit. IR Remote Control for signal switching and receiver control. TCP/IP Web Console, which offers powerful visual tools for users remotely interacting with the unit from a PC. Applications for HDR-88-XT The HDR-88-XT excels at routing 4K signals in large venues and extended AV setups. Concert halls, sporting arenas, multiplex cinemas, convention centers, lecture halls, and more are great places to set up an HDR-88-XT. Perfect for modest HDTVs and enormous jumbotron screens, the HDR-88-XT's 4K output ensures the highest picture quality on any display!
