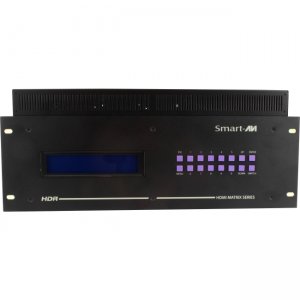

SmartAVI HDR16X16S HDMI 16x16 Matrix Switcher
Manufacturer: SmartAVI
UPC: 813280015493
SKU: HDR16X16S
Condition: New
SmartAVI HDR16X16S HDMI 16x16 Matrix Switcher
Product TypeAudio/Video Switchbox
Brand NameSmartAVI
ManufacturerSmart Audio Video Innovation
Product ModelHDR16X16S
Product NameHDMI 16x16 Matrix Switcher
Manufacturer Part NumberHDR16X16S
Manufacturer Website Addresshttp://www.smartavi.com
Graphics ModesFull HD
Maximum Video Resolution1920 x 1080
Environmentally FriendlyYes
Environmental CertificationRoHS
Country of OriginUnited States
Package Contents
  • HDMI 16x16 Matrix Switcher
  • SM-CSW Software
  • CCPWR06 Cable
Maximum Operating Distance40 ft
Number of HDMI Inputs16
Number of HDMI Outputs16
HDMI InYes
HDMI OutYes
Number of Displays Supported16
Number of Input Devices Supported16
Connectivity TechnologyCable
Device SupportedCameraComputerGaming ConsoleDisplayBlu-ray Disc PlayerDigital Signage
Height5.3"
Width19"
Depth13"
Form FactorRack-mountable
Weight (Approximate)15 lb
Limited Warranty1 Year
The HDR 16x16 conforms to the HDMI 1.4 standard and provides a connection to view any sixteen HDMI video sources on any combination of sixteen video displays. The matrix configuration provides maximum flexibility, allowing switching between any high-definition source and/or display. The HDR 16x16 provides HDMI output up to 40 feet with HDTV resolutions of 480p, 720p, 1080i and 1080p. The system works with Blu-ray players, TiVo systems, HT PCs and satellite set-top boxes that connect to an HDMI display. Users can switch to any source locally or remotely via a RS-232, IR, USB or TCP/IP connection. Our HDMI router is controlled by Windows®-based software that is easy to understand and simple to use - a cornerstone of all SmartAVI products.
