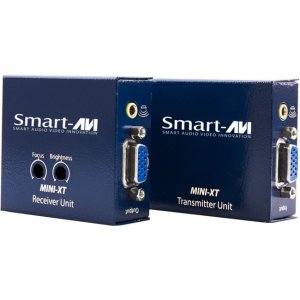

SmartAVI MINI-XTS 1-Port VGA Extender with Audio over Cat5e/6 Mini-XT
Manufacturer: SmartAVI
Mfg Number: Mini-XT
UPC: 0813280018449
SKU: MINI-XTS
Condition: New
SmartAVI MINI-XTS 1-Port VGA Extender with Audio over Cat5e/6 Mini-XT
Product TypeVideo Console/Extender
Brand NameSmartAVI
ManufacturerSmart Audio Video Innovation
Product ModelMini-XT
Product Name1-Port VGA Extender with Audio over Cat5e/6
Manufacturer Part NumberMINI-XTS
Manufacturer Website Addresshttp://www.smartavi.com
Graphics ModesWUXGA
Maximum Video Resolution1920 x 1200
Twisted Pair Cable StandardCategory 6
Media Type SupportedTwisted Pair
Maximum Operating Distance1000 ft
Number of Output Devices Supported1
Number of Input Devices Supported1
Connectivity TechnologyWired
USBYes
Number of Network (RJ-45) Ports2
Network (RJ-45)Yes
Number of USB Ports1
Number of VGA Outputs1
VGA InYes
VGA OutYes
Number of VGA Inputs1
Country of OriginUnited States
Package Contents
  • Mini-XT-RX Receiver
  • Mini-XT-TX Transmitter
  • 2 x DC5V2A Power Supply
Height1.1"
Width2"
Depth2.6"
Weight (Approximate)8.80 oz
Limited Warranty1 Year
The Mini-XT extender provides an affordable and reliable solution to extend VGA video signals with audio over a single Cat5e/6 cable up to 1,000 feet. Users often find the short distances covered by VGA cables to be limiting, and the Mini-XT offers an easy-to-implement workaround to those distance barriers using an inexpensive Cat5e/6 cable. In addition to video resolutions up to 1920x1080, depending on the length of extension, this extender also transmits stereo audio with a 3.5 mm audio jack. Also, the device has adjustable brightness and focus attenuation dials, which give users better control over the video quality. Both the receiver and transmitter require power, and the transmitter can be powered via the Mini USB port.
