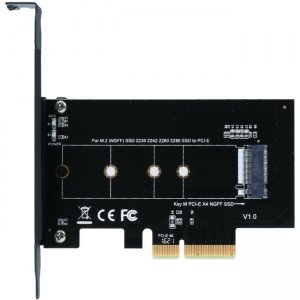

SIIG SC-M20014-S1 M.2 NGFF SSD PCIe Card Adapter
Manufacturer: SIIG
UPC: 662774026008
SKU: SC-M20014-S1
Condition: New
SIIG SC-M20014-S1 M.2 NGFF SSD PCIe Card Adapter
Price $18.18
Product TypeM.2 to PCI Express Adapter
Brand NameSIIG
ManufacturerSIIG, Inc
Product NameM.2 NGFF SSD PCIe Card Adapter
Manufacturer Part NumberSC-M20014-S1
Manufacturer Website Addresshttp://www.siig.com
Environmentally FriendlyYes
Environmental CertificationRoHS
Country of OriginTaiwan
Certifications & Standards
  • CE
  • FCC
Package Contents
  • M.2 NGFF SSD PCIe Card Adapter
  • Spare Low Profile bracket
  • User Reference Guide
Additional Information
  • PCIe 3.0 compliant
  • Bus type: PCIe (x4)
  • Drive type (not included): M key M.2 PCIe SSD (NVMe or AHCI)
    • Note: Systems released prior to 2015 may not support NVMe SSDs. Please check with your system provider for compatible SSD.
  • Compatible drive length: 30 / 42 / 60 / 80 (mm)
  • Product:
    • Dimensions: 4.72" (W) x 0.79" (H) x 3.54" (D)
    • Weight: 0.09lbs
    • Color: Black
  • Connector:
    • Host bus connector: PCI Express x4
    • SSD: M.2 connector (M key)
  • Environmental conditions:
    • Operating temperature: 32 to 122 degrees F
    • Storage temperature: 14 to 140 degrees F
    • Relative humidity: 10% to 90% RH (non-condensing)
Weight (Approximate)1.44 oz
Limited Warranty1 Year
SIIG's M.2 NGFF SSD PCIe Card Adapter adds one M.2 PCIe SSD (M key) to your PCIe equipped desktop computer, dramatically increasing speed and performance. This M.2 NGFF SSD PCIe adapter card accommodates various form factor high performance M.2 PCIe (M key) SSDs via multiple mounting options. It is PCIe 3.0 compliant and installs into PCIe x4 or larger bus slots. With the included spare low-profile bracket, this adapter card can be installed into both standard-height and low-profile system chassis for the utmost versatility in system chassis installation. The M.2 NGFF SSD PCIe Card Adapter is the perfect high performance upgrade significantly enhancing system performance by adding M.2 PCIe (M key) SSD capability to your PCIe equipped desktop computer.
