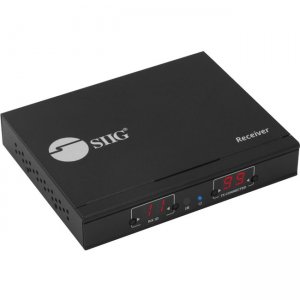

SIIG CE-H25C11-S1 HDMI 2.0 4K60Hz Over IP Extender / Matrix with IR - Receiver
Manufacturer: SIIG
UPC: 662774043104
SKU: CE-H25C11-S1
Condition: New
SIIG CE-H25C11-S1 HDMI 2.0 4K60Hz Over IP Extender / Matrix with IR - Receiver
Product TypeVideo Extender Receiver
Brand NameSIIG
ManufacturerSIIG, Inc
Product NameHDMI 2.0 4K60Hz Over IP Extender / Matrix with IR - Receiver
Manufacturer Part NumberCE-H25C11-S1
Manufacturer Website Addresshttp://www.siig.com
Graphics Modes4K
Environmentally FriendlyYes
Environmental CertificationRoHS
Country of OriginChina
Package Contents
  • HDMI 2.0 4K60Hz Over IP Extender / Matrix with IR - Receiver
  • Power Adapter
  • IR Receiver Cable
  • Mounting Ear (2pcs) and Screw (4pcs)
  • Remote Control
  • Insert Card
  • User Manual
Twisted Pair Cable StandardCategory 7
Media Type SupportedTwisted Pair
Maximum Operating Distance393.70 ft
Number of Output Devices Supported1
Connectivity TechnologyWired
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of HDMI Outputs1
HDMI OutYes
Receiver Height1.18"
Receiver Width4.33"
Receiver Depth5.28"
Receiver Weight (Approximate)11.52 oz
ColorBlack
Limited Warranty2 Year
Receives 4K HDMI signals through economical Cat5e/6/7 cabling from transmiter unit up to 120 meters away, use with HDMI 2.0 4K60Hz Over IP Extender/Matrix with IR - Transmitter (part # CE-H25B11-S1) sold separately Receives HDMI signals with stereo audio and transmits it to a remote display over Cat5e/6/7 cabling up to 120 meters, requires HDMI 2.0 4K60Hz Over IP Extender/Matrix with IR - Transmitter (part # CE-H25B11-S1) sold separately Note: A good quality Cat5e/6/7 cable is essential in delivering quality content. Cat6/6a/7 is recommended over Cat5e Works as a scalable TX/RX Matrix over dedicated IP network, allows up to 255 total units, limited to 100 transmitters. Additional transmitter units (part # CE-H25B11-S1) and Extender/Matrix Kits (part # CE-H25A11-S1) sold separately Note: Dedicated unmanaged IGMP Gigabit Switch is recommended for best performance and reliability Delivers up to [email protected] video resolution to deliver stunning and crystal clear images IR pass back function to control the source device from RX location Computer control software to select and switch between source devices (Matrix only) HDbitT protocol with H.264 compression over IP delivers superior performance and reliability
