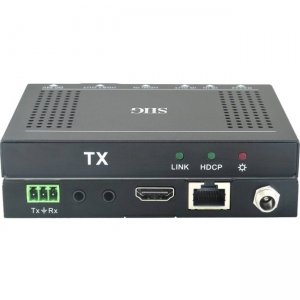

SIIG CE-H24411-S1 HDMI HDBaseT 4K Transmitter (TX)
Manufacturer: SIIG
UPC: 818245180957
SKU: CE-H24411-S1
Condition: New
SIIG CE-H24411-S1 HDMI HDBaseT 4K Transmitter (TX)
Product TypeVideo Extender Transmitter
Brand NameSIIG
ManufacturerSIIG, Inc
Product NameHDMI HDBaseT 4K Transmitter (TX)
Manufacturer Part NumberCE-H24411-S1
Manufacturer Website Addresshttp://www.siig.com
Graphics Modes4K
Maximum Video Resolution4096 x 2160
Environmentally FriendlyYes
Environmental CertificationRoHS
Country of OriginChina
Package Contents
  • HDMI HDBaseT 4K Transmitter (TX)
  • Power Adapter
  • 2 x Mounting Ears
  • 4 x Screw Kit
  • 4 x Plastic Cushions
  • RS-232 Cable
  • User Manual
Twisted Pair Cable StandardCategory 7
Media Type SupportedTwisted Pair
Maximum Operating Distance229.66 ft
Number of Input Devices Supported1
Connectivity TechnologyWired
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Serial PortYes
Number of HDMI Inputs1
HDMI InYes
Transmitter Height0.64"
Transmitter Width4.52"
Transmitter Depth4.30"
Transmitter Weight (Approximate)10.72 oz
Form FactorRack-mountable
Limited Warranty3 Year
Transmits HDMI audio and video signals, RS232 control, IR control, PoH up to 70 meters over a single CAT5e/6 cable with industry recognized HDBaseT technology 4K HDBaseT Transmitter unit designed to work in conjunction with other SIIG components Supports transmission distance up to 230ft (70m ) at 1080p and 131ft (40m) at 4K resolution Compliant with HDMI 1.4 and HDCP 2.2 Supports up to 4K @30Hz YUV 4:2:0 and 1080p 3D Supports Bi-directional PoH function to power the Transmitter and Receiver using only one power adapter connected to either unit Supports CEC pass-through, Bi-directional IR, RS232 control
