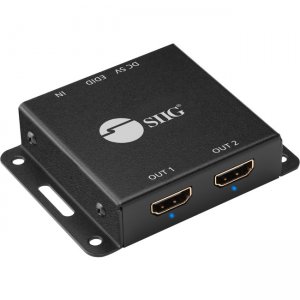

SIIG CE-H23K11-S1 2-Port HDMI 2.0 HDR Mini Splitter Amplifier with EDID Management
Manufacturer: SIIG
UPC: 818253840058
SKU: CE-H23K11-S1
Condition: New
SIIG CE-H23K11-S1 2-Port HDMI 2.0 HDR Mini Splitter Amplifier with EDID Management
Price $55.46
Product TypeSignal Splitter
Brand NameSIIG
ManufacturerSIIG, Inc
Product Name2-Port HDMI 2.0 HDR Mini Splitter Amplifier with EDID Management
Manufacturer Part NumberCE-H23K11-S1
Manufacturer Website Addresshttp://www.siig.com
Environmentally FriendlyYes
Environmental CertificationRoHS
TAA CompliantYes
Country of OriginTaiwan
Package Contents
  • 2-Port HDMI 2.0 HDR Mini Splitter Amplifier with EDID Management
  • USB Type-A to Micro-USB Power Cable
  • User Reference Guide
Maximum Video Resolution3840 � 2160
Maximum Video Bandwidth600 MHz
Maximum Operating Distance49.21 ft
USBYes
Number of HDMI Inputs1
Number of HDMI Outputs2
HDMI InYes
HDMI OutYes
Height0.7"
Width2.4"
Length2.4"
MaterialMetal
Weight (Approximate)4.64 oz
Input Voltage5 V DC
Limited Warranty3 Year
Portable design distributes HDMI video/audio signals from one HDMI source to two HDMI displays while maintaining signal quality Distributes HDMI video and audio from a single source to up to 2 HDMI displays simultaneously while maintaining signal quality Compliant with HDMI 2.0 and HDCP 2.2 Supports 18Gbps bandwidth Supports up to 4K (3840x2160) @60Hz (YUV 4:4:4 8-bit), HDR 4K (3840x2160) @60Hz (YUV 4:2:0 10-bit), 3D, xvYCC, x.v.Color & Deep Color Supports Dolby Digital, DTS-HD and Dolby TrueHD audio Resolution downscaling feature detects and configures the video resolution automatically according to the capabilities of each connected monitor Allows simultaneous 4K and 1080P output. Supports simultaneous mixed 4K and 1080p display outputs. EDID and firmware management feature for maximum compatibility now and into the future, offers widest range of monitor/display/TV support from either pre-programmed EDID or EDID learning from the connected displays. Firmware upgradeable (via Mini USB port) for expanded compatibility Low heat generation with sturdy metal housing provides excellent heat dissipation, durability, and minimizes EMI/RFI noise interference. Low heat generation and ESD protection to guarantee stability and reliable performance
