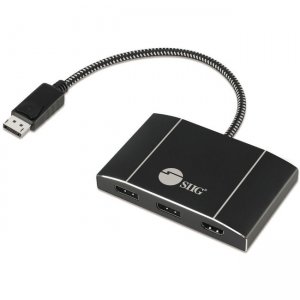

SIIG CE-DP0N11-S1 Triple 4K DisplayPort 1.4 to 2 DP & HDMI MST Hub Splitter
Manufacturer: SIIG
UPC: 662774043937
Condition: New
SIIG CE-DP0N11-S1 Triple 4K DisplayPort 1.4 to 2 DP & HDMI MST Hub Splitter
Product Type Signal Splitter
Brand Name SIIG
Manufacturer SIIG, Inc
Product Name Triple 4K DisplayPort 1.4 to 2 DP & HDMI MST Hub Splitter
Manufacturer Part Number CE-DP0N11-S1
Manufacturer Website Address http://www.siig.com
Environmentally Friendly Yes
Environmental Certification RoHS
Country of Origin China
Maximum Video Resolution 7680 x 4320
DisplayPort Yes
Number of DisplayPort Outputs 1
Number of HDMI Outputs 1
HDMI Out Yes
Number of DisplayPort Inputs 1
Height 0.7"
Width 2.6"
Length 4.1"
Material Aluminum
Weight (Approximate) 4.48 oz
Limited Warranty 2 Year
Easily connect up to 2 DisplayPort and 1 HDMI displays from a single DisplayPort 1.4 output Boost your productivity by connecting two DisplayPort and one HDMI displays to single DisplayPort output with Multi-Stream Transport (MST) technology Provides multiple display modes for various applications such as Mirror mode same content on each display, Extended mode with individual content on each display, and Panoramic Video Wall mode which combines multiple monitors to use as one large display Note: Mirror mode using a NVIDIA Surround technology graphics adapter is limited to 2 displays. Video Wall mode requires either a AMD Eyefinity, Intel, or NVIDIA Surround technology graphics adapter Total Bandwidth 32.4Gbps (Max): Supports one UHD 8K (7680 x 4320)@30Hz display, two [email protected] displays, or three 4K (3840x2160)@30Hz or less display. Other resolution combinations which are less than or equal to [email protected] will work also. For example, three 2K, three 1080p, 4K+2K+1080p etc. Note: The total combined bandwidth among all connected displays must NOT be exceeded the total bandwidth Compatible with DisplayPort 1.4 with MST graphics cards with AMD Eyefinity, Intel Collage or NVIDIA Surround technology Supports 4K HDR and HDCP 2.2 Reset button allows re-detection of all the displays if any of the displays are not detected Plug-n-play, trouble-free set up without complicated hardware or driver installation Premium aluminum housing with embedded woven braided DisplayPort cable decreases surrounding interference and provides optimal video quality Notes:1) Mirror mode using Windows Display Utility and NVIDIA Utility is limited to 2 displays2) Video Wall mode (e.g., Panoramic) requires either an AMD Eyefinity, Intel, or NVIDIA Surround technology graphics adapter3) Currently, most Intel HD Graphics cards only support up to 3 external monitors altogether4) macOS currently does not support MST function and will only mirror the displays5) Requires USB power source of at least 5V/600mA
