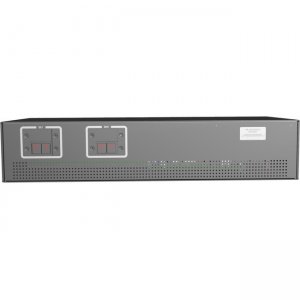

Server Technology C1S24SP-EPAA4A6 PRO1 24-Outlets PDU
Manufacturer: Server Technology
SKU: C1S24SP-EPAA4A6
Condition: New
Server Technology C1S24SP-EPAA4A6 PRO1 24-Outlets PDU
Product TypePDU
Product SeriesPRO1
Brand NameServer Technology
ManufacturerServer Technology, Inc
Product ModelC1S24SP-EPAA4A6
Product NamePRO1 C1S24SP-EPAA4A6 24-Outlets PDU
Manufacturer Part NumberC1S24SP-EPAA4A6
Manufacturer Website Addresshttp://www.servertech.com
Environmentally FriendlyYes
Environmental CertificationEU RoHSWEEE
Package Contents
  • PRO1 C1S24SP-EPAA4A6 24-Outlets PDU
  • Mounting Brackets
Network (RJ-45)Yes
Mounting OrientationHorizontal
PlacementRack
Height3.5"
Width17.2"
Depth7"
Rack Height2U
Form FactorRack-mountable
Power Rating (Watt)7300 W
Input Current32 A
Input Voltage230 V AC
Input ReceptaclesIEC 2P+PE 6Hr 230V/32A
Output Receptacles18 x IEC 60320 C136 x IEC 60320 C19
Protection TypeOvercurrent ProtectionDouble Pole
Management
  • SSH
  • SMTP
  • Syslog
  • HTTP/HTTPS
  • TLSv1.2
  • SSHv2
  • Telnet
  • SNMPv2c and v3 (GET, SET, Traps)
  • IPv4 and IPv6
  • LDAPv3/LDAPS
  • TACACS+
  • RADIUS
  • FTP/SFTP
Limited Warranty2 Year
The Server Technology® PRO1 Switched Rack PDU provides control of outlet power and local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS® technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input. These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP. The PRO1 Switched "Master" PDU can be connected to as many as three PRO1 Switched "Link" PDUs to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration.
