Panduit P48B33M Vertical Basic Power Distribution Unit

Home > Power Protection / Security > Power Distribution Units PDU's

Manufacturer: Panduit

UPC: 613056265899

SKU: P48B33M

Condition: New

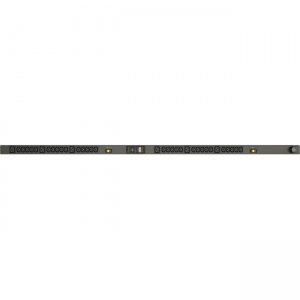

Panduit P48B33M Vertical Basic Power Distribution Unit

Specifications

Product Type	PDU
Brand Name	Panduit
Manufacturer	PANDUIT CORP
Product Model	P48B33M
Product Name	P48B33M Vertical Basic Power Distribution Unit
Manufacturer Part Number	P48B33M
Manufacturer Website Address	http://www.panduit.com
Packaged Quantity	1
Environmentally Friendly	Yes
Environmental Certification	RoHSREACH
Mounting Orientation	Vertical
Placement	Rack
Width	2"
Depth	4.4"
Rack Height	0U
Length	71.7"
Power Rating (VA)	17.30 kVA
Input Current	60 A
Input Voltage	230 V AC
Output Voltage	230 V AC
Input Receptacles	IEC 60309 3P+E 9H 60A
Output Receptacles	12 x IEC 60320 C1936 x IEC 60320 C13
Protection Type	Circuit Protection

Description

The 60A, 208V vertical 3 Phase Delta Vertical PDU has (36) C13 and (12) C19 receptacles, a 10' (3m) power cord with a IEC 60309 3P+E 9h 60A plug, and measures 71.7"L x 2.0"W x 4.4"D (1821.2mm x 50.8mm x 111.8mm). UL Listed. Color: Black
