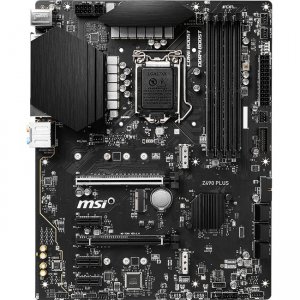

MSI Z490PLUS Desktop Motherboard
Manufacturer: MSI
UPC: 824142217658
Condition: New
MSI Z490PLUS Desktop Motherboard
Product Type Desktop Motherboard
Brand Name MSI
Manufacturer MSI
Product Model Z490 PLUS
Product Name Z490 PLUS Desktop Motherboard
Manufacturer Part Number Z490PLUS
Manufacturer Website Address http://www.msi.com
Chipset Manufacturer Intel
Processor Socket Socket LGA-1200
Processor Supported Pentium Gold Celeron Core i9 Core i5 Core i7 Core i3
Total Processor Supported 1
Number of Memory Slots 4
Memory Form Factor DIMM UDIMM
Memory Speed Supported 2666 MHz 2133 MHz 2933 MHz
Intel Optane Memory Ready Yes
Memory Technology DDR4 SDRAM
Maximum Memory 128 GB
Audio Channels 7.1
Gigabit Ethernet Yes
2.5Gigabit Ethernet Yes
Number of SATA Interfaces 6
Total Number of Onboard USB Ports 9
Number of Onboard USB 2.0 Ports 4
Number of M.2 Interfaces 2
Number of Onboard USB 3.2 Ports 5
Number of PCI Express x1 Slots 3
Number of Total Expansion Slots 5
Number of PCI Express x16 Slots 2
Total Number of PCI Express Slots 5
Onboard Video CPU Dependent Video
RAID Supported Yes
RAID Levels 0 10 1 5
Controller Type Serial ATA/600
Number of Network (RJ-45) Ports 1
DisplayPort Yes
Total Number of USB Ports 6
Number of USB 2.0 Ports 2
Number of USB 3.2 Ports 4
Country of Origin China
Width 12"
Depth 9.6"
Form Factor ATX
Limited Warranty 3 Year
128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 4 x USB 3.1 Port - HDMI - 1 x RJ-45 - 6 x SATA Interfaces
