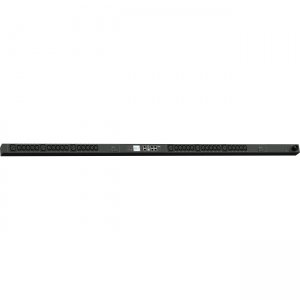

Geist NU30049L 24-Outlet PDU
Manufacturer: Geist
SKU: NU30049L
Condition: New
Geist NU30049L 24-Outlet PDU
Product TypePDU
Brand NameGeist
Product ModelMNU3EGW1-24PBB8-6PS15B0A10-S-A
Product NameMNU3EGW1-24PBB8-6PS15B0A10-S-A 24-Outlet PDU
Manufacturer Part NumberNU30049L
Manufacturer Website Addresshttp://www.vertivco.com
Environmentally FriendlyYes
Environmental CertificationRoHS
Country of OriginUnited States
Package Contents
  • MNU3EGW1-24PBB8-6PS15B0A10-S-A 24-Outlet PDU
  • Vertical Mounting Bracket Kit
Network (RJ-45)Yes
Mounting OrientationVertical
Rack Height0U
Form FactorRack-mountable
Power Rating (Watt)17.20 kW
Input Current60 A
Input Voltage230 V AC
Output Voltage208 V AC
Input Receptacles1 x IEC 60309 3P+E 60A
Output Receptacles12 x U-Lock IEC 60320 C1312 x U-Lock IEC 60320 C19
Protection TypeOvercurrent Protection
  • DHCP
  • HTTP
  • IPv4
  • IPv6
  • LDAP
  • NTP
  • RSTP
  • SSH
  • SMTP
  • SNMP v1
  • SNMP v2c
  • SNMP v3
  • Ssyslog
Limited Warranty5 Year
The NU30049L provides IP-based monitoring and outlet control with quick access to real-time outlet-level power metrics and environmental sensor data. Using Visible Light Communication (VLC) technology, NU30049L optically transmits power usage data from its LED display to a handheld device using the Geist Mobile App, presenting comprehensive power usage data down to the phase and circuit levels. With the Geist Upgradeable hot-swap technology, users may easily upgrade PDUs to the latest available technology by replacing the Interchangeable Monitoring Device (IMD) module.
