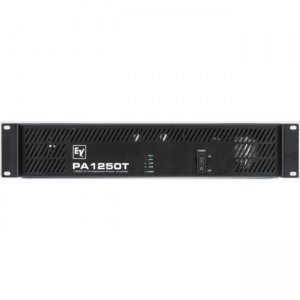

Electro-Voice PA 1250T 120V Single-Channel Power Amplifier
Manufacturer: Electro-Voice
UPC: 800549444293
SKU: PA 1250T 120V
Condition: New
Electro-Voice PA 1250T 120V Single-Channel Power Amplifier
Price $694.09
Product TypeAmplifier
Product SeriesPA
Brand NameElectro-Voice
ManufacturerThe Bosch Group
Product ModelPA1250T
Product NamePA1250T Single-Channel Power Amplifier
Manufacturer Part NumberPA 1250T 120V
Manufacturer Website Addresshttp://www.bosch.com
Audio Channels1
RMS Output Power270 W
Minimum Frequency Response65 Hz
Maximum Frequency Response20 kHz
Operating Power Consumption430 W
Country of OriginChina
Height3.5"
Width19"
Depth16"
Weight (Approximate)36.38 lb
Limited Warranty3 Year
The PA series of compact commercial rack mount power amplifiers are designed for demanding sound reinforcement, background music/paging and public address system installations where long term reliability and flex- ibility is the ticket. These units are exceptional values, loaded with features and are easy to install in a variety of system designs. The models in the PA series range from 160 to 450 watts of power per channel in a compact 2RU package.All models have a variety of features which enables them to be cus- tomized to a wide range of demanding commercial sound and audio reinforcement applications. The PA1250T, PA2250T and PA2400T all provide 70/100V output capability using low distortion output trans- formers for wide bandwidth and minimal saturation.Compact and Easy To InstallThe input connectors are a 3pin phoenix style which provide balanced audio. The speaker outputs also feature convenient phoenix style quick disconnect terminals to facilitate pre-wiring of the installation. Built in rack mount ears and rear rack supports provide secure and convenient mounting.Complete Protection PackageA comprehensive 4 way protection package in every PA series amplifier helps protect the amplifier and speaker for reliable long term performance. The package provides complete protection for excessive temperature, audio limiters, power up delay and peak current limiters. All PA series models provide excellent headroom for a wide dynamic range on music signals. The onboard dynamic limiter protects the amplifier and speaker from dangerous transients.All the PA amplifier models feature a low distortion amplifier design which can be bridged for more power flexibility in multi channel models. The physical chassis of the PA series is also designed for reliability. Ample internal cooling capacity ensures reliable operation. The PA series runs cool and stable with the direct flow thru chassis layout. The multistage cooling fan runs exceptionally quiet in all modes.
