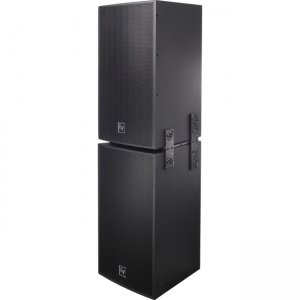

Electro-Voice EVF-1121S-FGB Single 12" Front Loaded Fully-Weatherized Bass Element
Manufacturer: Electro-Voice
Condition: New
Electro-Voice EVF-1121S-FGB Single 12" Front Loaded Fully-Weatherized Bass Element
Price $1,646.60
Product TypeWoofer
Product SeriesEVF
Brand NameElectro-Voice
ManufacturerThe Bosch Group
Product NameSingle 12" Front Loaded Fully-Weatherized Bass Element
Manufacturer Part NumberEVF-1121S-FGB
Manufacturer Website Addresshttp://www.bosch.com
Packaged Quantity1
Package Contents
  • Single 12" Front Loaded Fully-Weatherized Bass Element
  • 2 x 4 Contact 10 AWG Phoenix/EuroBlock Style Screw Terminal
  • Gland Nut with Input Panel Cover for Weatherizing
Woofer Diameter12"
Weight (Approximate)57.70 lb
Crossover Type1-way
Minimum Frequency Response48 Hz
Maximum Frequency Response156 Hz
RMS Output Power400 W
PMPO Output Power1600 W
Driver Type12" Woofer
Impedance8 Ohm
Sensitivity98 dB
The Electro-Voice® EVF-1121S-FG is a fully-weatherized, fiberglass- coated, high power, front-loaded bass element that can be used in a variety of applications where high quality sound reinforcement is required in a lightweight package.The EVF-1121S-FG utilizes the EVS12SB 12" woofer used FEA optimization for motor, suspension, and electrical design for very low distortion and maximum intelligibility at high SPL levels.The EVF-1121S-FG features make it ideal for many fixed install applications, including applications with full exposure to outdoor elements. The trapezoidal enclosure is constructed out of weather resistant birch, and coated with fiberglass for maximum protection from extreme outdoor elements. The unique acoustic and rigging design allows for vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF & EVH Series, with an assortment of Full-Range, Low Frequency and Subwoofer loudspeakers, it gives you the tools to maximize flexibility of system design, no matter what the application and budget. The innovative input panel provides phoenix style connectors (included in all standard models) and gland nut cover plate (for weatherizing applications). An available 70.7/100 Volt transformer kit simply mounts to the input panel for use in distributed systems. All these features give you the flexibility to do a large range of venues with fewer items in inventory and quickly support your customer's requirements.
