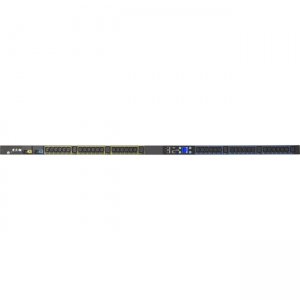

Eaton EMI104-10 ePDU 42-Outlets PDU
Manufacturer: Eaton
UPC: 743172050458
SKU: EMI104-10
Condition: New
Eaton EMI104-10 ePDU 42-Outlets PDU
Price $707.44
Product TypePDU
Brand NameEaton
ManufacturerEaton Corporation
Product NameePDU 42-Outlets PDU
Product LineePDU
Manufacturer Part NumberEMI104-10
Manufacturer Website Addresshttp://www.eaton.com/EatonCom/Markets/NorthAmerica
Network (RJ-45)Yes
Height66.5"
Width2.1"
Depth2.1"
Rack Height38U
Form FactorRack-mountable
Weight (Approximate)16 lb
Power Rating5.76 kVA
Input Current24 A
Input Voltage240 V
Input ReceptaclesNEMA L6-30P
Output Receptacles36 x IEC 60320 C136 x IEC 60320 C19
Limited Warranty3 Year
Eaton G3 Metered Input ePDUs provide a best-in-class design featureing billing grade accuracy monitoring of input and branch circuits on a local LCD pixel display or over a network connection. The high accuracy meter will measure current, voltage, power and energy for load balancing, capacity planning, efficiency monitoring and energy usage reporting. Designed for IT and data center applications means high reliability and a robust design made for high operating temperatures found in containment or networking closets. IEC outlet grip plug retention secures plugs in place using standard cables Advanced LCD pixel display for local display of current, voltage, power, energy and menu setup of parameters such as IP address or display rotation High operating temperature (140F / 60C) for containment or hot network closet environments Hot-swap meter for servicability of without removing power to the rack +/- 1% billing grade accuracy for high accuracy reporting of energy usage Daisy chain of IP addresses allows four devices to share one network connection
