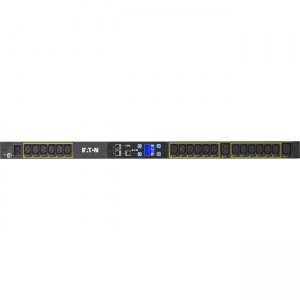

Eaton EMI103-10 ePDU 20-Outlets PDU
Manufacturer: Eaton
UPC: 743172050441
SKU: EMI103-10
Condition: New
Eaton EMI103-10 ePDU 20-Outlets PDU
Product TypePDU
Brand NameEaton
ManufacturerEaton Corporation
Product NameePDU 20-Outlets PDU
Product LineePDU
Manufacturer Part NumberEMI103-10
Manufacturer Website Addresshttp://www.eaton.com/EatonCom/Markets/NorthAmerica
Network (RJ-45)Yes
Rack Height21U
Form FactorRack-mountable
Weight (Approximate)9.30 lb
Power Rating3.84 kVA
Input Current16 A
Input Voltage120 V208 V
Input ReceptaclesIEC 60320 C20
Output Receptacles18 x IEC 60320 C132 x IEC 60320 C19
Limited Warranty3 Year
Eaton G3 Metered Input ePDUs provide a best-in-class design featureing billing grade accuracy monitoring of input and branch circuits on a local LCD pixel display or over a network connection. The high accuracy meter will measure current, voltage, power and energy for load balancing, capacity planning, efficiency monitoring and energy usage reporting. Designed for IT and data center applications means high reliability and a robust design made for high operating temperatures found in containment or networking closets. IEC outlet grip plug retention secures plugs in place using standard cables Advanced LCD pixel display for local display of current, voltage, power, energy and menu setup of parameters such as IP address or display rotation High operating temperature (140F / 60C) for containment or hot network closet environments Hot-swap meter for servicability of without removing power to the rack +/- 1% billing grade accuracy for high accuracy reporting of energy usage Daisy chain of IP addresses allows four devices to share one network connection
