Eaton EMA107-10 ePDU Managed 24-Outlets PDU
Manufacturer: Eaton
UPC: 743172069184
SKU: EMA107-10
Condition: New

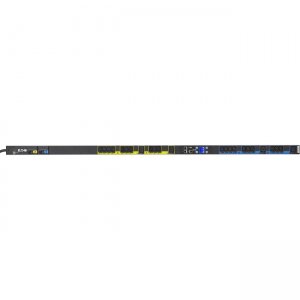

Eaton EMA107-10 ePDU Managed 24-Outlets PDU
Price $1,486.71
Product TypePDU
Product SeriesManaged
Brand NameEaton
ManufacturerEaton Corporation
Product ModelEMA107-10
Product NameePDU Managed EMA107-10 24-Outlets PDU
Product LineePDU
Manufacturer Part NumberEMA107-10
Manufacturer Website Addresshttp://www.eaton.com/EatonCom/Markets/NorthAmerica
Network (RJ-45)Yes
Height66.5"
Width2.1"
Depth2.1"
Rack Height38U
Form FactorVertical
Power Rating5.76 kVA
Input Current24 A
Input Voltage230 V AC
Output Voltage230 V AC
Input Receptacles1 x NEMA L6-30P
Output Receptacles20 x IEC 60320 C134 x IEC 60320 C19
Eaton ePDU G3 Managed technology provides a best-in-class design featuring billing grade accuracy monitoring at the outlet level on a local LCD pixel display or over a network connection. The high accuracy meter will measure current, voltage, power and energy for load balancing, capacity planning, efficiency monitoring and energy usage reporting. Outlet switching allows for on, off or reboot of individual outlets, which reduces the cost of managing remote or local IT data center environments. The robust design is UL rated to operate at 140 degrees F (60 degrees C) ambient operating temperature for containment and high temperature environments. Outlet switching for on, off and reboot control to reduce management costs Outlet level metering to +/- 1% billing grade accuracy for customer billing or level 3 PUE calculations LCD pixel display with hot-swap capability enables load balancing and local setup of key parameters such as IP address and display orientation High operating temperature (140 degrees F / 60 degrees C) for containment or hot network closet environments Daisy chain of IP addresses allows four devices to share one network connection to reduce network install costs by up to 75% IEC outlet grip plug retention secures plugs in place using standard cables
