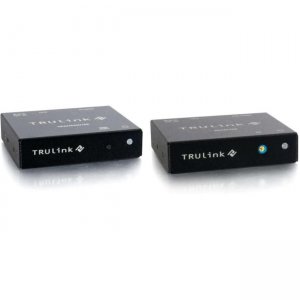

C2G 29387 TruLink Video Console/Extender
Manufacturer: C2G
UPC: 757120293873
SKU: 29387
Condition: New
C2G 29387 TruLink Video Console/Extender
Product TypeVideo Console/Extender
Brand NameC2G
ManufacturerC2G
Product NameTruLink Video Console/Extender
Product LineTruLink
Manufacturer Part Number29387
Manufacturer Website Addresshttp://www.cablestogo.com
Graphics ModesWUXGA
Maximum Video Resolution1920 x 1200
Green CompliantYes
Green Compliance Certificate/AuthorityRoHS
Twisted Pair Cable StandardCategory 6
Media Type SupportedTwisted Pair
Maximum Operating Distance300 ft
Connectivity TechnologyWired
Network (RJ-45)Yes
VGA InYes
VGA OutYes
Height0.8"
Width3.3"
Depth2.8"
ColorBlack
Weight (Approximate)2 lb
Limited Warranty3 Year
The VGA over UTP Box Transmitter to Box Receiver Kit allows you to extend a VGA signal over a Cat5/Cat5e/Cat6 unshielded twisted pair cable up to 300ft without signal degradation at 1920x1200 or 1920x1080 resolutions. This solution is compatible with any operating system and is truly plug and play with no drivers or software required. In addition, this solution utilizes phantom power providing you the flexibility to power at either the transmitter or receiver end. EQ (sharpness) adjustments can be made for optimal signal clarity.The EDID copy feature ensures compatibility with any monitor. Built-In power surge protection and high ground loop immunity ensure high performance signal extension.
