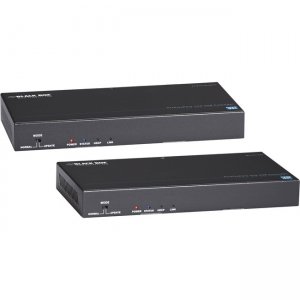

Black Box UVX-DP-TP-100M Video Extender - DisplayPort, RS-232, Audio, USB 2.0, 4K
Manufacturer: Black Box
UPC: 822088125549
SKU: UVX-DP-TP-100M
Condition: New
Black Box UVX-DP-TP-100M Video Extender - DisplayPort, RS-232, Audio, USB 2.0, 4K
Product Type Video Extender Transmitter/Receiver
Brand Name Black Box
Manufacturer Black Box Corporation
Product Name Video Extender - DisplayPort, RS-232, Audio, USB 2.0, 4K
Manufacturer Part Number UVX-DP-TP-100M
Manufacturer Website Address http://www.blackbox.com
Graphics Modes 4K
Maximum Video Resolution 3840 x 2160
Environmentally Friendly Yes
Environmental Certification WEEE RoHS
Package Contents
  • 1 x DisplayPort Transmitter
  • 1 x DisplayPort Receiver
  • 1 x 12-VDC, 2-A power supply with US, EU, UK, and AU power clips
  • 2 x 3.5-mm, 2-pin male Phoenix connectors
  • 2 x Mounting brackets
  • User manual
Twisted Pair Cable Standard Category 7
Media Type Supported Twisted Pair
Maximum Operating Distance 330 ft
Number of Output Devices Supported 1
Number of Input Devices Supported 1
Connectivity Technology Wired
USB Yes
Number of Network (RJ-45) Ports 2
Network (RJ-45) Yes
Number of USB Ports 3
DisplayPort Yes
Transmitter Height 0.99"
Transmitter Width 7.91"
Transmitter Depth 3.95"
Receiver Height 0.99"
Receiver Width 7.91"
Receiver Depth 3.95"
Transmitter Weight (Approximate) 1.10 lb
Receiver Weight (Approximate) 1.10 lb
Limited Warranty 3 Year
1 Input Device - 1 Output Device - 330 ft Range - 2 x Network (RJ-45) - 3 x USB - DisplayPort - 4K - 3840 x 2160 - Twisted Pair - Category 7
