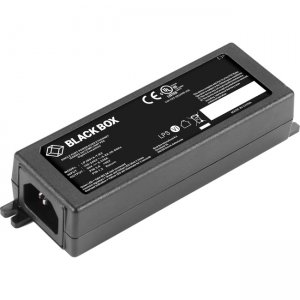

Black Box LPJ001A-T-R2 PoE Gigabit Ethernet Injector - 802.3at
Manufacturer: Black Box
UPC: 822088133230
SKU: LPJ001A-T-R2
Condition: New
Black Box LPJ001A-T-R2 PoE Gigabit Ethernet Injector - 802.3at
Price $53.48
Product Type PoE Injector
Brand Name Black Box
Manufacturer Black Box Corporation
Product Model LPJ001A-T-R2
Product Name PoE Gigabit Ethernet Injector - 802.3at
Manufacturer Part Number LPJ001A-T-R2
Manufacturer Website Address http://www.blackbox.com
Environmentally Friendly Yes
Environmental Certification RoHS WEEE
Certifications & Standards

Standards:

  • IEEE 802.3at
  • IEEE 802.3af
Approvals:
  • CE
  • cUL/UL
Maximum Output Voltage 56 V DC
Input Voltage 120 V AC 230 V AC
Height 1.1"
Width 1.8"
Depth 5.5"
Weight (Approximate) 6.40 oz
Input Ports 1 10/100/1000Base-T
Output Ports 1 10/100/1000Base-T
Protection Type Over Voltage Over Current Overload Protection Short Circuit Over Temperature
Limited Warranty 1 Year
An economical wiring solution. Carries both data and power over a single Ethernet cable Powers 802.3at and 802.3af compliant devices Ideal for multi-radio wireless access points, PTZ security cameras, IP phones containing streaming video displays, and LCDs Enables you to avoid installing AC power at a remote camera, access point, or thin client Move equipment from room to room without costly, time-consuming rewiring Supports 10-/100-/1000-Mbps midspan data connections on an RJ-45 input/output Provides overvoltage/overcurrent overload protection as well as short circuit protection on the power output (per 802.3at specifications) Diagnostic LEDs indicate 802.3at device detection and alert you to faults Backward compatible with 802.3af standard equipment Simple plug-and-play installation RoHS compliant PoE+ midspan injectors are used in Enterprise applications to power VoIP phones, wireless access points, IP security cameras and more. PoE+ injectors add power to the Ethernet link and will help you avoid upgrading non-PoE switch infrastructure. PoE enables you to avoid installing AC power at a remote powered device.
