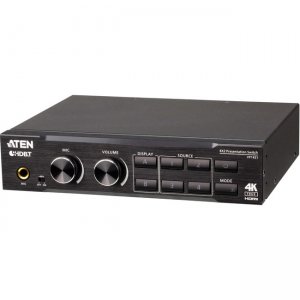

Aten VP1421 4 x 2 True 4K Presentation Matrix Switch with Scaling, DSP, and HDBaseT-Lite
Manufacturer: Aten
UPC: 672792010880
SKU: VP1421
Condition: New
Aten VP1421 4 x 2 True 4K Presentation Matrix Switch with Scaling, DSP, and HDBaseT-Lite
Product TypeAudio/Video Switchbox
Brand NameAten
ManufacturerATEN Technology, Inc
Product ModelVP1421
Product Name4 x 2 True 4K Presentation Matrix Switch with Scaling, DSP, and HDBaseT-Lite
Manufacturer Part NumberVP1421
Manufacturer Website Addresshttp://www.aten-usa.com
Packaged Quantity1
Graphics Modes4K
Maximum Video Resolution4096 x 2160
Environmentally FriendlyYes
Environmental CertificationRoHSWEEE
Package Contents
  • 4 x 2 True 4K Presentation Matrix Switch with Scaling, DSP, and HDBaseT-Lite
  • 1x IR Receiver
  • 1x IR Remote Control
  • 4x 3-pole Terminal Blocks
  • 2x 5-pole Terminal Blocks
  • 1x Power Adapter
  • 1x User Instructions
Maximum Operating Distance459.32 ft
Media Type SupportedTwisted Pair
Number of HDMI Inputs2
Number of HDMI Outputs1
VGA InYes
HDMI InYes
HDMI OutYes
Number of VGA Inputs1
Number of Displays Supported2
Number of Input Devices Supported4
Connectivity TechnologyCable
Device SupportedNotebookMedia Player
Height1.7"
Width6.7"
Depth7.9"
Form FactorUnder TableRack-mountable
Weight (Approximate)2.56 lb
The VP1421 is a multi-in-one presentation switch that integrates a video matrix, True 4K scaler, HDBaseT extender, audio DSP, and analog-to-digital converter functions into a single compact enclosure, ideal for meeting rooms and educational spaces. True 4K, HDR Visual Clarity Supports resolutions up to 4096 x 2160 @ 60Hz (4:4:4) and HDR to deliver vivid content in every presentation. Smooth AV Switching Scaled to Perfection Connect up to 4 sources (1 HDBaseT, 2 HDMI, 1 VGA), smoothly switch between them and display contents scaled perfectly to True 4K and 1080p simultaneously. HDBaseT Extended Transmission over One Cable Simplifies cabling and transmits AV, power, and bi-directional RS-232 and IR control signals up to 140m via Cat 6/6a or ATEN 2L-2910 Cat 6 cables (applying both HDBaseT input and output ports). Built-in Advanced Audio DSP Supports microphone input with selectable 48V Phantom Power and allows microphone input to be mixed with program audio and embedded into display output while automatically reducing program audio to enhance speech audibility. Flexible Audio Embedding/De-Embedding Supports stereo audio embedding into HDMI output or separation to Audio Line Out and Optical Audio Out. Extract HDMI and HDBaseT audio to different audio outputs as well to ease adaptation to you preferred audio setup. Versatile Control, Streamlined Operations Control via front-panel pushbuttons, IR remote, web-based GUI and any control interface via RS-232, Ethernet, and Contact Closure to streamline your operations.
