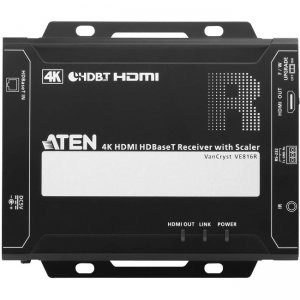

Aten VE816R 4K HDMI HDBaseT Receiver with Scaler
Manufacturer: Aten
UPC: 672792007859
SKU: VE816R
Condition: New
Aten VE816R 4K HDMI HDBaseT Receiver with Scaler
Product TypeVideo Extender Receiver
Brand NameAten
ManufacturerAten Technologies
Product ModelVE816R
Product Name4K HDMI HDBaseT Receiver with Scaler
Product LineVanCryst
Manufacturer Part NumberVE816R
Manufacturer Website Addresshttp://www.aten-usa.com
Graphics Modes4K
Maximum Video Resolution4096 x 2160
Environmentally FriendlyYes
Environmental CertificationRoHSWEEE
Package Contents
  • 4K HDMI HDBaseT Receiver with Scaler
  • 1 x IR Transmitter
  • 1 x IR Receiver
  • 1 x Terminal Block
  • 1 x Power Adapter
  • 1 x User Instructions
Twisted Pair Cable StandardCategory 6a
Media Type SupportedTwisted Pair
Maximum Operating Distance492.13 ft
Number of Output Devices Supported1
Connectivity TechnologyWired
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Serial PortYes
Number of HDMI Outputs1
HDMI OutYes
Height1.2"
Width5.8"
Depth6.6"
ColorBlack
Form FactorRack-mountable
Weight (Approximate)1.48 lb
Limited Warranty2 Year
ATEN VE816R 4K HDMI HDBaseT Receiver with Scaler is designed to work with several ATEN HDBaseT Matrix Switches to extend 4K HDMI signals up to 100 m over a single Cat 5e/6/6a or an ATEN 2L-2910 Cat 6 cable, and at the same time, scales videos of different resolutions for optimal display. Supporting bi-directional RS-232 channel and IR signaling pass-through, the VE816R provides users the path to remotely control the compatible devices. When working with ATEN HDBaseT Matrix, The VE816R features Frame Sync and Cable Quality Tester technologies to ensure smooth video and intuitive cable testing process. When working with ATEN HDMI HDBaseT-Lite Matrix Switches, or Modular Matrix Switches with HDBaseT output boards, the VE816R supports video wall integration and ATEN's Seamless Switch ™ function, providing users the ultimate A/V experiences.
