Aten VE2812AT HDMI & VGA HDBaseT Transmitter with POH ([email protected]) (HDBaseT Class A)
Manufacturer: Aten
SKU: VE2812AT
Condition: New

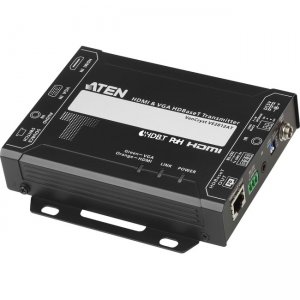

Aten VE2812AT HDMI & VGA HDBaseT Transmitter with POH (4K@100m) (HDBaseT Class A)
Product Type Video Extender Transmitter
Brand Name Aten
Manufacturer ATEN Technology, Inc
Product Model VE2812AT
Product Name HDMI & VGA HDBaseT Transmitter with POH ([email protected]) (HDBaseT Class A)
Product Line VanCryst
Manufacturer Part Number VE2812AT
Manufacturer Website Address http://www.aten-usa.com
Graphics Modes 4K UHD
Maximum Video Resolution 4096 x 2160
Environmentally Friendly Yes
Environmental Certification RoHS WEEE
Package Contents
  • HDMI & VGA HDBaseT Transmitter with POH ([email protected]) (HDBaseT Class A)
  • 1 x RS-232 Terminal Block
  • 4 x Foot Pads
  • 1 x Power Adapter
  • 1 x User Instructions
Twisted Pair Cable Standard Category 6a
Media Type Supported Twisted Pair
Maximum Operating Distance 492.13 ft
Number of Input Devices Supported 2
Connectivity Technology Wired
Number of Network (RJ-45) Ports 1
Network (RJ-45) Yes
Number of HDMI Inputs 1
VGA In Yes
HDMI In Yes
Number of VGA Inputs 1
Transmitter Height 1.18"
Transmitter Width 4.84"
Transmitter Depth 5.64"
Transmitter Weight (Approximate) 1.04 lb
Form Factor Desktop Rack-mountable
ATEN VE2812AT is a transmitter for sending VGA (with audio) and HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. Featuring built-in PoH (Power over HDBaseT) function, the VE2812AT receives power supply from the HDBaseT output port on the connected device. This eliminates the need for a power adapter and reduces the hassle of power line deployment behind the wall. The VE2812AT guarantees reliable transmission of HDMI signals, supporting 3D, Deep Color, and embedded HD lossless audio formats. It also ensures transmission of VGA (with audio) at distance up to 100 m. In addition, it supports Long Reach Mode up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p. For utility flexibility, the VE2812AT can serve as a video switch by connecting two sources and distribute them to an identical output. The VE2812AT is recommended to be deployed in paired with the VE2812R. The VE2812R can carry on IR/RS-232 from the VE2812R to the VE2812AT, allowing users to remotely control the VE2812AT unit through RS-232 command mode via input port switching. The solution is ideal for a variety of settings, such as meeting rooms, digital educational environment or wherever high video quality is required.
