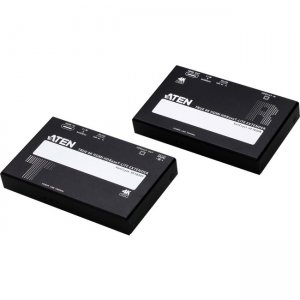

Aten VE1830 True 4K HDMI HDBaseT-Lite Extender (True 4K@35m) (HDBaseT Class B) New
Manufacturer: Aten
UPC: 672792005978
SKU: VE1830
Condition: New
Aten VE1830 True 4K HDMI HDBaseT-Lite Extender (True 4K@35m) (HDBaseT Class B) New
Price $387.94
Out of Stock
Product Type Video Extender Transmitter/Receiver
Brand Name Aten
Manufacturer ATEN Technology, Inc
Product Model VE1830
Product Name True 4K HDMI HDBaseT-Lite Extender (True 4K@35m) (HDBaseT Class B) New
Product Line VanCryst
Manufacturer Part Number VE1830
Manufacturer Website Address http://www.aten-usa.com
Graphics Modes 4K UHD
Maximum Video Resolution 3840 x 2160
Environmentally Friendly Yes
Environmental Certification RoHS WEEE
Package Contents
  • 1 x VE1830T True 4K HDMI HDBaseT-Lite Transmitter
  • 1 x VE1830R True 4K HDMI HDBaseT-Lite Receiver
  • 2 x RS-232 Terminal Blocks
  • 1 x Power Adapter
  • 1 x Mounting Kit
  • 1 x User Instructions
Twisted Pair Cable Standard Category 6
Media Type Supported Twisted Pair
Maximum Operating Distance 229.66 ft
Number of Output Devices Supported 1
Number of Input Devices Supported 1
Connectivity Technology Wired
Number of Network (RJ-45) Ports 2
Network (RJ-45) Yes
Number of HDMI Inputs 1
Number of HDMI Outputs 1
HDMI In Yes
HDMI Out Yes
Transmitter Height 0.66"
Transmitter Width 2.83"
Transmitter Depth 4.67"
Receiver Height 0.66"
Receiver Width 2.83"
Receiver Depth 4.67"
Transmitter Weight (Approximate) 5.29 oz
Receiver Weight (Approximate) 4.23 oz
Form Factor Rack-mountable
The VE1830 True 4K HDMI HDBaseT-Lite Extender provides great flexibility in professional A/V installation with its high-quality transmitter VE1830T and receiver VE1830R. Powered by HDBaseT™ technology, the VE1830 transmits True 4K HDMI signals up to 35m using a single Cat 5e/6 cable. This HDBaseT-Lite Extender supports HDCP 2.2 and meets the HDMI 2.0a specifications (3D, Deep Color, 4k) to ensure visually lossless high quality video and image. In addition, it features PoC (Power over Cable) which can power the receiver unit from the transmitter side with power supply. The VE1830 offers an easy-to-use and cost-effective solution for professional A/V installations that require superior HDMI video quality, such as in digital classrooms, video conference rooms and home theater.
